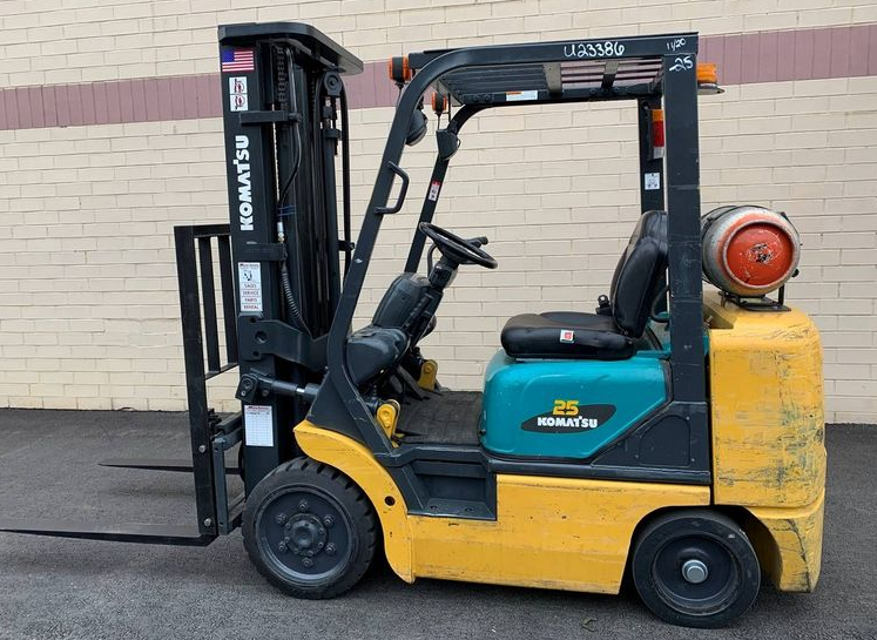

Komatsu Forklift Trucks FG25C-14

Replace engine oil filter cartridge (gasoline and diesel engines)

Check, adjust engine intake and exhaust valve clearance

Tighten (retorque) engine cylinder head bolts

Check air cleaner and replace element/filter if dirty

Check wheel rims for deformation, cracking and damage

Check wheel bearings for play and abnormal noise

Check hydraulic cylinders for looseness, deformation, cracking, damage and wear

Check all piping/tubing/connectors for oil leakage, deformation or damage

Check operation of hydraulic cylinders

Check hydraulic drift of lift cylinder

Check hydraulic drift of tilt cylinders

Check movement of work equipment control lever(s)

Check forks and fork stopper for deformation, cracking, damage and wear

Fuel injection timing checked and adjusted?

Perform this operation to maintain compliance with EPA Diesel Engine Exhaust regulations.

LPG mixer air valve diaphragm replaced?

Replace more often in cold or severe service applications.

O-ring for LPG tank valve replaced?

Sign off on the 2000 Hourly Forklift Trucks Maintenance

Warning: This maintenance check requires trained personnel with PPE!

To prevent improper adjustment by untrained personnel, load and speed control screws have tamper-proof caps.

Check and adjust fuel injection pressure

Check and adjust atomizing condition of nozzles

Perform these operations to maintain compliance with EPA Diesel Exhaust Emission regulations.

Sign off on the forklift trucks maintenance

32.1 REPLACING FUSES AND RELAYS

32.1.1 CHASSIS FUSES (ALL TRUCKS)

Turn the starting switch to the OFF position

Turn the starting switch to the OFF position

Open the cover of the fuse box or relay box and replace the failed component
