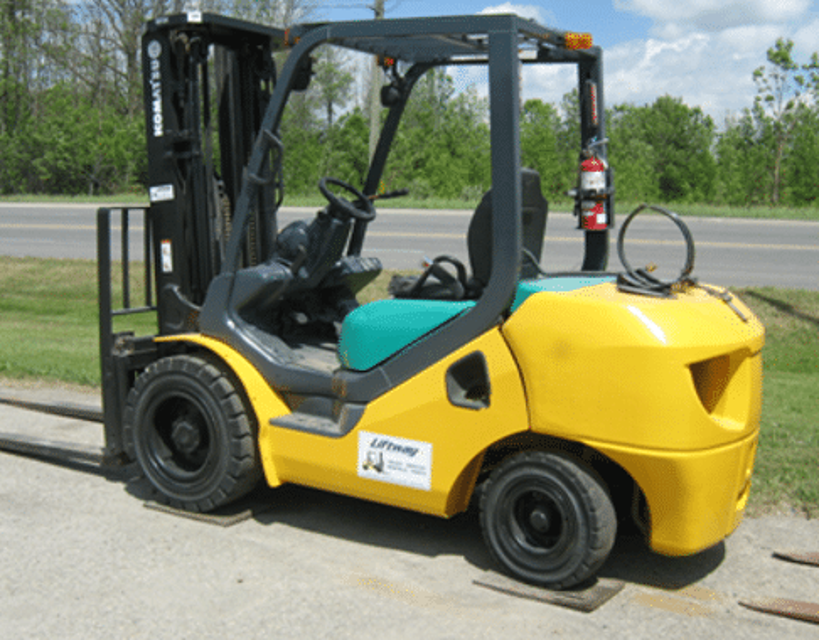

Komatsu Forklift Truck FG35AHTUS-16

10.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

Check with oil level gauge and add oil if necessary. (Also check for oil contamination)

1. Cracks, scratches, deterioration or twist of piping

E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

Chains inspected and lubricated with SAE 40 wt. oil or Bowman Heavy Load Red Grease

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

Chains inspected and lubricated with SAE 40 wt. oil or Bowman Heavy Load Red Grease

E-MT SERIES FULL FREE LIFT 3-STAGE MAST

Carriage extended a few inches off the ground and chains are under equal tension

Mast extended to its fullest height to ensure the mast rails and carriage extend freely without binding

Upright rails inspected for proper lubrication

Internal reeving hoses travel evenly in the hose guides

E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

Load rollers on the uprights and carriage shimmed to 1/16 in. (1.5 mm) clearance

Chains checked for wear and stretch

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

Load rollers on the uprights and carriage shimmed to 1/16 in. (1.5 mm) clearance

Chains checked for wear and stretch

E-MT SERIES FULL FREE LIFT 3-STAGE MAST

Chains inspected and lubricated with SAE 40 wt. oil or equivalent

9.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

Select dry and even surface road, drive at full speed and stop abruptly to check the following:

8.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

1. Deformation, cracks or scratches: Check visually

Adjustment: If 2.0 mm or over, adjust with shims to less than 0.5 mm.

Tightening torque for mounting bolt (1).

4. Looseness of cap mounting bolt
