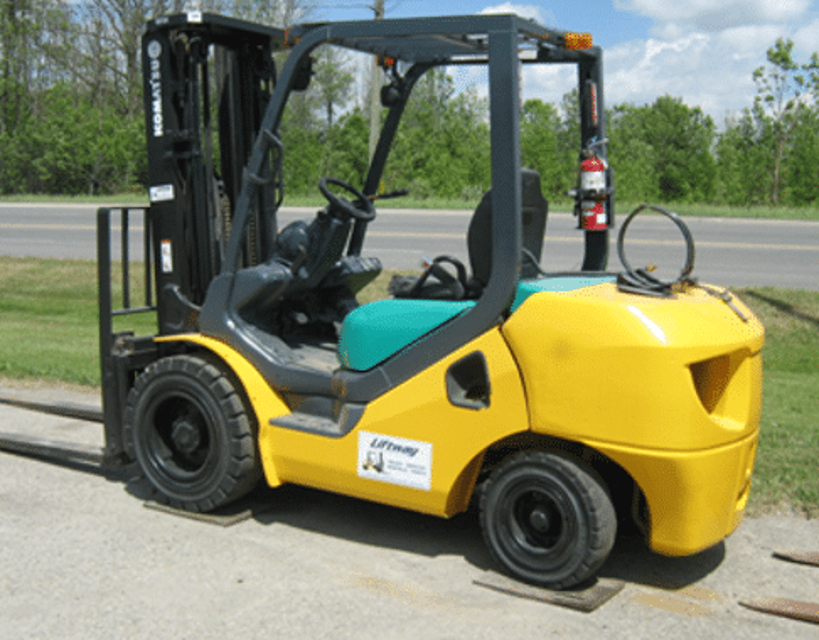

Komatsu Forklift Truck FG35AHT-16

Warning: This maintenance check requires trained personnel with PPE!

Check for deformation, cracks or scratches in the rear axle

Play of center pin in the rear axle

Clearance of thrust in the rear axle

Check for looseness of cap mounting bolt in the rear axle

Check for shaking, pulling or dragging in the steering wheel

Check for play at engine idle in the steering wheel

Check for interference between wheel and other part of truck in the steering wheel

Check for oil leakage in the steering valve

12. MASTS E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

Perform the following at the beginning of each work shift:

1. Extend the carriage a few inches off the ground and make sure the chains are under equal tension. Refer to Section 5.6-3 for chain adjustment.

2. Extend the mast to its fullest height to make sure the mast rails and carriage extend freely without binding.

3. While the mast is extended, inspect the upright rails for proper lubrication. Refer to Section 2.4-3 for rail lubrication.

4. Make sure the internal reeving hoses (if equipped) travel evenly in the hose guides. Adjust the hose ends if required. Tighten the fittings making sure they do not twist.

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

Perform the following at the beginning of each work shift:

1. Extend the carriage a few inches off the ground and make sure the chains are under equal tension. Refer to Section 5.6-3 and 5.6-4 for chain adjustment.

12. MASTS E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

After each 500 hours of lift truck operation, and in addition to the Daily and 100 Hour Inspection:

1. Each pair of load rollers on the uprights and carriage should be shimmed so that a total side to side clearance no greater than 1/16 in. (1.5 mm) occurs at the tightest point throughout the travel of the member. Pry between the upright and load roller so that the opposite load roller is tight against the upright.

Measure the clearance for the pair of rollers at XXX shown. See Figure 10a.

2. Check the chains for wear and stretch. Refer to Section 5.6-1 for complete chain inspection.

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

After each 500 hours of lift truck operation, and in addition to the Daily and 100 Hour Inspection:

1. Each pair of load rollers on the uprights and carriage should be shimmed so that a total side to side clearance no greater than 1/16 in. (1.5 mm) occurs at the tightest point throughout the travel of the member. Pry between the upright and load roller so that the opposite load roller is tight against the upright.

Measure the clearance for the pair of rollers at XXX shown. See Figure 16.

12. MASTS E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

1. Inspect the load rollers for excessive wear or damage. Rollers with visible flat spots or cracks should be replaced. See Figure 25a.

2. Inspect the load roller bearings by turning the rollers on their shafts. Rollers with roughness or noticeable restrictions to turning should be replaced.

3. Inspect the load roller stub shafts. If they are damaged or have cracks at the base, the upright mast must be re- placed or repaired.

4. Inspect the outer upright thrust plugs. If the wear surface is worn to less than 1/16 in. (1.5 mm), they should be replaced.

5. Inspect the hoist chains as described in Section 5.6-1.

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

1. Inspect the load rollers for excessive wear or damage. Rollers with visible flat spots or cracks should be replaced. See Figure 39.

2. Inspect the load roller bearings by turning the rollers on their shafts. Rollers with roughness or noticeable restrictions to turning should be replaced.

9.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

Select dry and even surface road, drive at full speed and stop abruptly to check the following:
