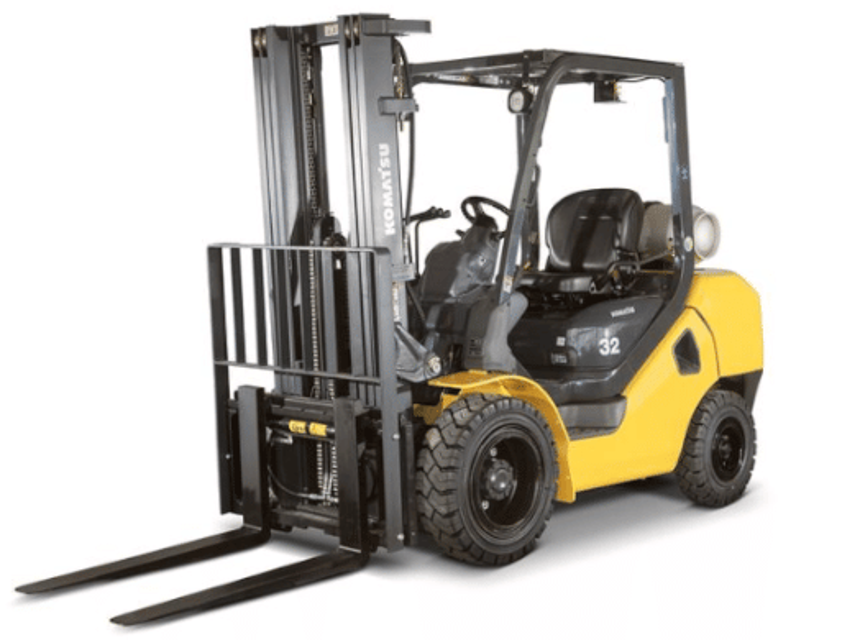

Komatsu Forklift Truck FG32HTLS-16

12. MASTS E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

1. Inspect the rollers for excessive wear or damage. Rollers with visible flat spots or cracks should be re- placed.

2. Inspect the roller bearings by turning the rollers on their shafts. Rollers with roughness or noticeable restrictions to turning should be replaced.

3. Inspect all welds between the carriage side plates and the carriage fork bars. If any welds are cracked, replace the carriage.

4. Inspect the roller stub shafts. If they are damaged or if there are cracks at the base of the stub shafts, the carriage must be replaced or repaired. Contact Komatsu Forklift for repair procedures.

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

1. Inspect the rollers for excessive wear or damage. Rollers with visible flat spots or cracks should be replaced.

2. Inspect the roller bearings by turning the rollers on their shafts. Rollers with roughness or noticeable restrictions to turning should be replaced.

3. Inspect all welds between the carriage side plates and the carriagefork bars. If any welds are cracked, replace the carriage.

7.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

1. Abnormal noise when traveling

2. Oil level in differential casing

3. Dirt or stain with oil (see “DIFFERENTIAL TORQUES AND SEALS” on page 7-19 for checking oil level and replacing).

4. Oil leakage from differential casing

1. Deformation, cracks or scratches: Visual check on and around the frame and mounting bolt or welded area

2. Looseness of mounting bolt: Tightening torque ofmounting bolt

12. MASTS E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

1. Inspect the load rollers for excessive wear or damage. Rollers with visible flat spots or cracks should be replaced. See Figure 25a.

2. Inspect the load roller bearings by turning the rollers on their shafts. Rollers with roughness or noticeable restrictions to turning should be replaced.

3. Inspect the load roller stub shafts. If they are damaged or have cracks at the base, the upright mast must be re- placed or repaired.

4. Inspect the outer upright thrust plugs. If the wear surface is worn to less than 1/16 in. (1.5 mm), they should be replaced.

5. Inspect the hoist chains as described in Section 5.6-1.

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

1. Inspect the load rollers for excessive wear or damage. Rollers with visible flat spots or cracks should be replaced. See Figure 39.

2. Inspect the load roller bearings by turning the rollers on their shafts. Rollers with roughness or noticeable restrictions to turning should be replaced.

3.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

Select dry and even surface road, drive at full speed and stop abruptly to check the following:

CAUTION: The factory-set adjustments may not be correct for your truck.

Inspect all chains for lubrication.

Inspect all chains for any visible damage.

Inspect the main lift chain adjustment for proper tension and upright position.

Inspect the free lift chain adjustment for proper tension and carriage position.

Inspect for lubrication in the Mast upright channels.

Sign off on the mast inspection
