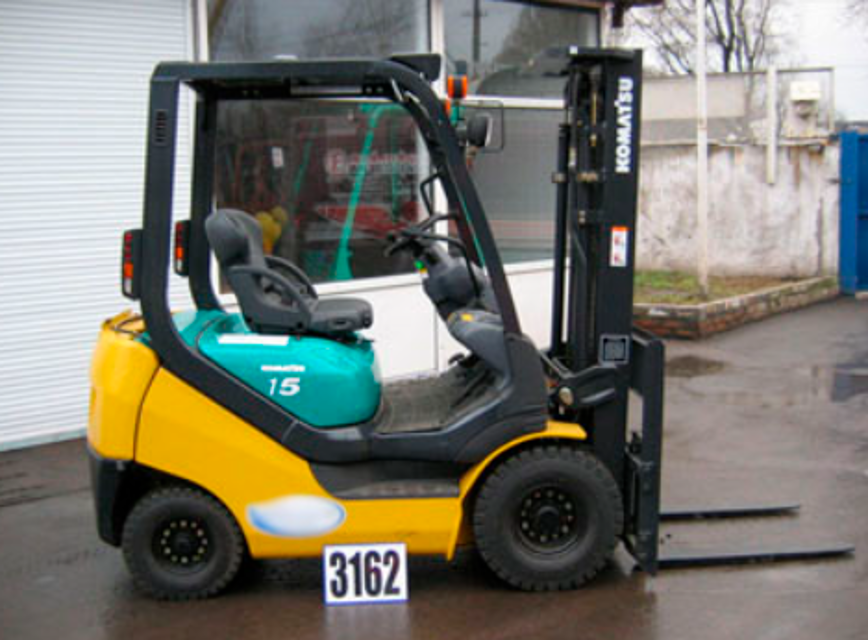

The Komatsu Forklift Truck FG15HC-20 is a reliable and efficient industrial asset designed for heavy lifting and material handling. Known for its robust performance and durability, this forklift is ideal for various applications in warehouses and construction sites. Enhance productivity with the FG15HC-20's advanced features and ergonomic design.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Komatsu Forklift Truck FG15HC-20

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Komatsu Forklift Truck FG15HC-20

Create an account to install this asset package.

Maintenance Plans for Komatsu Forklift Truck Model FG15HC-20

Integrate maintenance plans directly into your work orders in MaintainX.

Clutch Disc Replacement

Open the clutch case cover

Fix the pressure plate with the pressure plate mounting bolt

Slide the snap ring (1) and remove the pin (2)

Push the shaft toward the transmission

Remove the pressure plate mounting bolt (3) and slide the pressure plate

Remove the clutch disc

Be careful not to damage the spring when sliding the pressure plate

Sign off on the clutch disc replacement

Run this procedure

Diesel Engine Fuel Filter Replacement

Warning: Always make sure to prepare the container for receiving draining water and bleeding air. Wipe up spilled fuel if any, because it may be in danger to cause fire if fuel sticks here and there.

Remove the combination sensor plug (4) at the bottom of the cartridge.

Remove the cartridge (3) with the filter wrench.

Install the combination sensor plug to the new cartridge (3).

Fill the new cartridge with the fuel and apply the thin layer of engine oil before installation.

Loosen the plug (2) and pump the knob (1) up and down until no more bubbles come out with the fuel.

Tighten the plug (2).

Sign off on the fuel filter replacement

Run this procedure

Parking Brake Lever Adjustment

Before starting adjustment, check to make sure that all of both front and rear wheels of the forklift truck has locked with stoppers respectively

Release the parking brake by pushing the parking brake lever (2) forward to the release position (B) while pressing the push button (1)

Turn the adjustment bolt (3) and adjust the lever control force at the initial extension of the cable to be set as follows: For standard brake147 – 196N {15 – 20 kgf}

Turn the adjustment bolt (3) and adjust the lever control force at the initial extension of the cable to be set as follows: For power brake: 245 – 294N {25 – 30 kgf}

Sign off on the brake lever adjustment

Run this procedure

Torqflow Transmission Case Oil Inspection

WARNING: The temperature of the oil is very high immediately after stop operation of the truck. Be sure to start inspection after cooling down completely

Open the floor plate to check the oil level with the oil level gauge

Refill the oil if necessary

Sign off on the oil inspection

Run this procedure

Diesel Engine Oil Filter Replacement

Cartridge removed with the filter wrench

Filter mounting cleaned

Engine oil applied on the thread and the seal of the new cartridge

New cartridge installed

Engine started

No oil leakage on the filter-mounting surface

Sign off on the oil filter replacement
