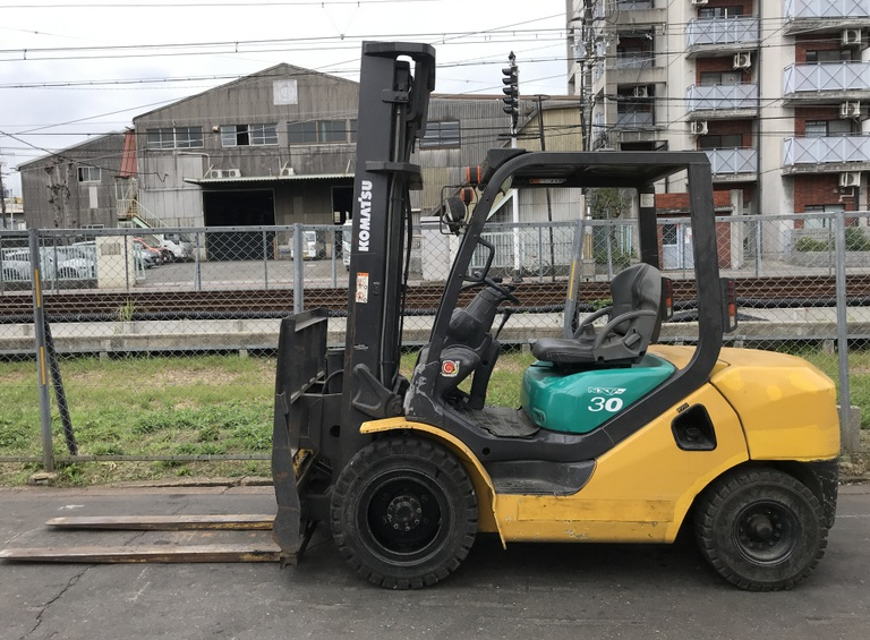

Komatsu Forklift Truck FD30C-16

PROCEDURE FOR ADJUSTMENT OF INCHING AND BRAKE PEDAL (TORQFLOWMODEL)

Brake pedal stroke within standard range

Height of the brake pedal from the floor plate

Height of the inching pedal from the floor plate

PROCEDURE FOR ADJUSTNENT OF STOP LAMP AWITCH

Measurement 'C' range after adjustment of the brake pedal height

Sign off on the pedal adjustment

Warning: This procedure requires trained personnel with PPE!

Loosen the nut to remove the cover and take the filter out.

Clean the dirt at the bottom and drain the water.

If any damage is found on the gasket of the cover, replace it with a new one.

After replacement, check the hose fitting area for no fuel leakage.

Sign off on the fuel filter replacement

Warning: This replacement procedure requires trained personnel with PPE!

Note: These parts may deteriorate in time and are susceptible to wear. It is difficult to estimate the degree of wear at time of periodic maintenance; therefore, even if no apparent wear is found, always replace with new parts within the prescribed period of replacement (or earlier if trouble is found).

Note that periodic replacement has nothing to do with guarantee service.

Upload a photo of the replaced lift chain

Sign off on the forklift truck replacement

Remove the spark plug with the special plug wrench

Clean the carbon up stuck on the plug head and the surroundings

Measure the plug gap A as shown on the illustration on the right with the plug gap gauge. Plug gap A: 0.7 to 0.8 mm

Sign off on the spark plug replacement

Fix the pressure plate with the pressure plate mounting bolt

Slide the snap ring (1) and remove the pin (2)

Push the shaft toward the transmission

Remove the pressure plate mounting bolt (3) and slide the pressure plate

Be careful not to damage the spring when sliding the pressure plate

Sign off on the clutch disc replacement
