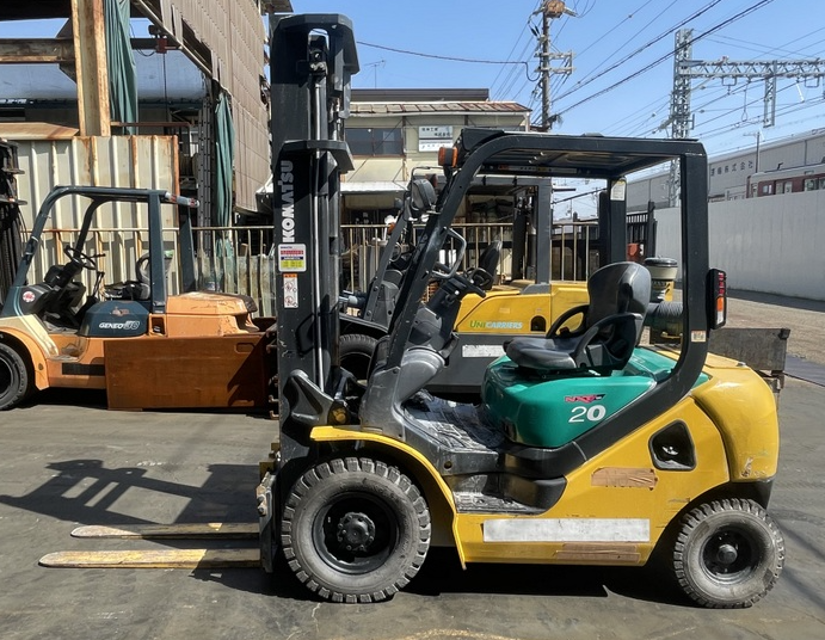

Komatsu Forklift Truck FD20T-16

11.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

1. Deformation, cracks or wear of fork stopper pin

2. Opening or difference in height of fork tips

1. Cracks or wear of upper and lower hooks

2. Cracks or wear of fork base/root

Check fork base thickness (C) for specified size

12. MASTS E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

Each pair of chains has been factory-lubricated using heat and pressure to force the lubricant thoroughly into the chain links. Avoid removal or contamination of this factory applied lubricant. Do not wash, sand blast, etch, steam clean, or paint the chains on initial mast installation.

The chains must be adjusted with equal tension to ensure proper load distribution and mast operation. To determine equal tension, extend the unloaded mast to put the chains under tension. Press the center of a strand of chain with your thumb, then press at the same place on the other chain of the pair. Each chain in a pair should have equal

“give”. If tension is not equal, adjust the chains as de- scribed in Chain Adjustment.

Inspect the chains. If inspection reveals that one strand of a pair of chains requires replacement, both strands of the pair should be replaced.

*Check for cracked side plates. If you find cracked side plates, replace both strands of chain.

*Check for tight joints. If tight joints are caused by rust or corrosion, loosen them with SAE 40 wt. oil or penetrating oil. If they cannot be loosened, or if the tight joints are caused by bent pins or plates or by peened plate edge, replace both strands of the chain.

5.1.3 TORQUE CONVERTER ASSEMBLY

See drawing of “TORQUE CONVERTER ASSEMBLY” on page 5-4 for structure, which consists of following elements.

• Power Joint (Input Plate, Turbine Hub)

• Relief Valve (Main, Torque Converter Inlet Port, Lubrication)

12. MASTS E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

1. Inspect the load rollers for excessive wear or damage. Rollers with visible flat spots or cracks should be replaced. See Figure 25a.

2. Inspect the load roller bearings by turning the rollers on their shafts. Rollers with roughness or noticeable restrictions to turning should be replaced.

3. Inspect the load roller stub shafts. If they are damaged or have cracks at the base, the upright mast must be re- placed or repaired.

4. Inspect the outer upright thrust plugs. If the wear surface is worn to less than 1/16 in. (1.5 mm), they should be replaced.

5. Inspect the hoist chains as described in Section 5.6-1.

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

1. Inspect the load rollers for excessive wear or damage. Rollers with visible flat spots or cracks should be replaced. See Figure 39.

2. Inspect the load roller bearings by turning the rollers on their shafts. Rollers with roughness or noticeable restrictions to turning should be replaced.

12. MASTS E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

After each 100 hours of lift truck operation, and in addition to the daily inspection:

1. Inspect and lubricate the full length of the chains with SAE 40 wt. oil or Bowman Heavy Load Red Grease.

CAUTION: The chains must be coated with a film of lubricant at all times.

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

After each 100 hours of lift truck operation, and in addition tothe daily inspection:

1. Inspect and lubricate the full length of the chains with SAE 40 wt. oil or Bowman Heavy Load Red Grease.

CAUTION: The chains must be coated with a film of lubricant at all times.

E-MT SERIES FULL FREE LIFT 3-STAGE MAST
