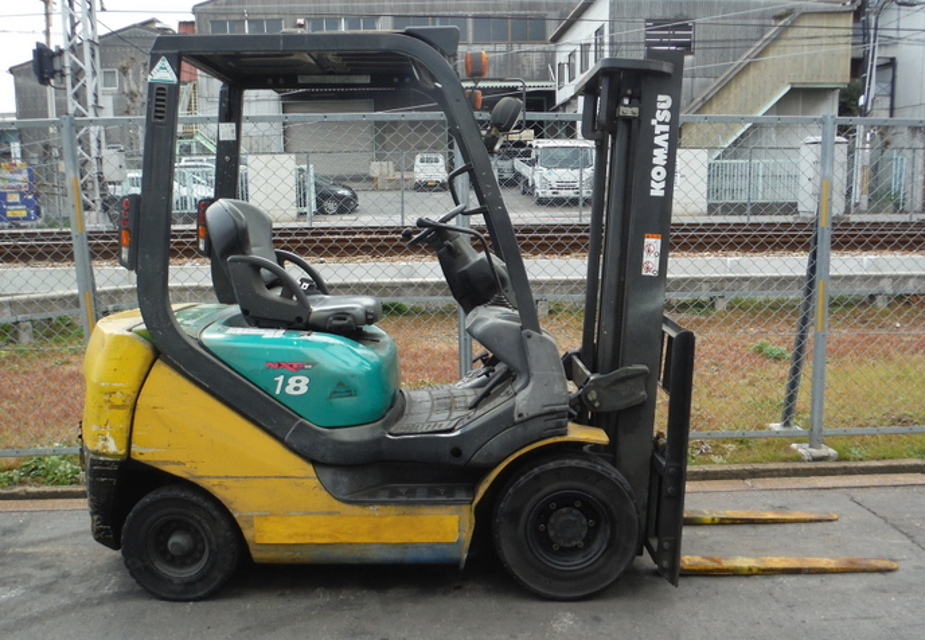

Komatsu Forklift Truck FD18T-20

Connect the timing advance tester (1) as shown in the diagram on the right.

Power switch turned on and timing position of the advance adjustment knob (2) adjusted.

Engine started and running at the specified idling speed.

Timing light (3) glowed and indicator and timing mark stamped on the crankshaft pulley and flywheel correctly aligned.

If timing is wrong, distributor (4) turned to the right or the left for further adjustment.

Ignition timing advances quickly when the engine is revved up.

Sign off on the gasoline engine adjustment

PROCEDURE FOR ADJUSTMENT OF ACCELERATOR PEDAL

1. Set the stopper bolt (1) temporarily with the height of 65 mm.

2. After assembling the cable, adjust the outer casing mount of the cable to allow the pedal play of 2 to 3 mm.

3. Adjust the height of stopper bolt (1) again to allow the engine full throttle when flooring the accelerator pedal.

4D92E/4D94LE/4D98E ENGINE MODEL

PROCEDURE FOR ADJUSTMENT OF ACCELERATOR PEDAL

1. Set the stopper bolt (1) temporarily with the height of 65 mm.

2. After assembling the cable, adjust the outer casing mount of the cable to allow the pedal play between 2 to 3 mm.

Warning: This replacement procedure requires trained personnel with PPE!

Upload a photo of the replaced parts

Sign off on the forklift truck replacement

Drain the engine oil removing the drain plug and tighten it again

Refill the engine oil up to the specified level. Be careful not to let it overflow

Check the oil level with the engine oil level gauge

1. Remove the element from the air cleaner.

2. Cover the air connector with clean cloth or tape.

3. Clean the interior of the air cleaner and remove the cover from the air cleaner.

4. Put a new element into the air cleaner.

1. Remove the element from the air cleaner.

3. Cover the air connector with clean cloth or tape.
