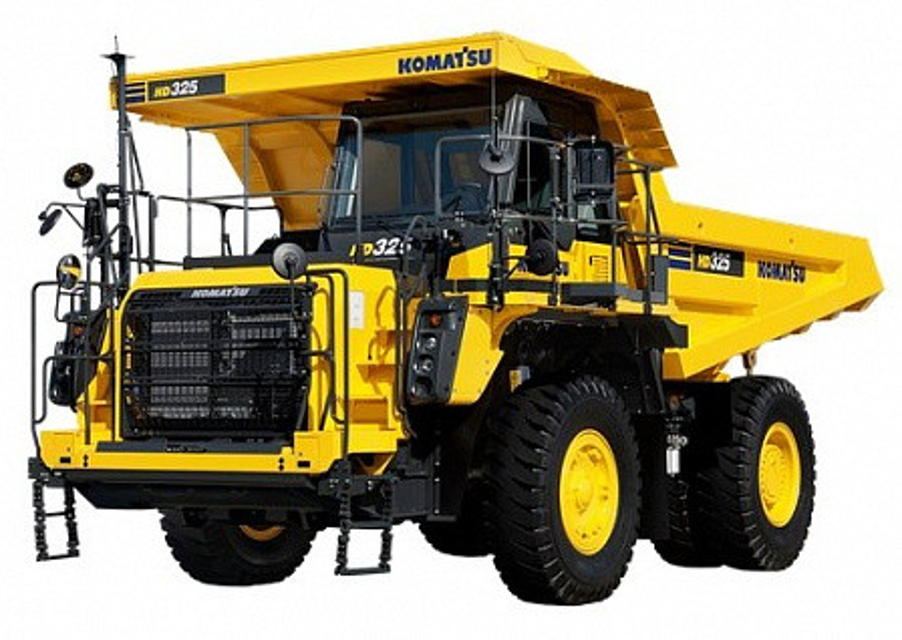

Komatsu Dump Truck HD325-7

Warning: Ask your Komatsu distributor to carry out the following works

High-pressure piping clamp replaced

Fuel spray prevention cap replaced

Starting motor and alternator overhauled

Sign off on the maintenance work

WARNING: The parts and oil are at high temperature after the engine is stopped, and may cause burns. Wait for the temperature to go down before starting the work.

Refill capacity: 38 liters (10.04 US gal)

Remove drain plug (1), then install the standard drain hose.

Set a container in position to catch the oil, then loosen drain the valve (2) slowly to avoid getting oil on yourself, and drain the oil.

Check the drained oil, and if there are excessive metal particles or foreign material, please contact your Komatsu distributor.

Remove the drain hose, then tighten drain valve (2) and drain plug (1).

Using the filter wrench, turn filter cartridge (3) to the left and remove it.

Clean the filter holder, fill the new filter cartridge with oil, then coat the seal and thread of the filter cartridge with oil (or coat thinly with grease) and install.

REPLACE FUEL MAIN FILTER CARTRIDGE

After the engine has been operated, all parts are at high temperature, so do not replace the filter immediately. Wait for all parts to cool down before starting the operation.

High pressure is generated inside the engine fuel piping system when the engine is running.

When replacing the filter, wait for at least 30 seconds after stopping the engine to let the internal pressure go down before replacing the filter.

Do not bring any fire or flame close.

Genuine Komatsu fuel filter cartridges use a special filter that has highly efficient filtering ability. When replacing the filter cartridge, always use a genuine Komatsu part.

The common rail fuel injection system used on this machine consists of more precise parts than the conventional injection pump and nozzle.

CHECK, REPLACE STEERING A ARM MOUNTING BOLT

Check and replace the A arm mounting bolts, lock plate, and holder.

Please consult your Komatsu distributor when checking and replacing.

Warning: The parts and oil are at high temperature after the engine is stopped, and may cause burns. Wait for the temperature to go down before starting the work.

Refill capacity: 38 liters (10.04 US gal)

Remove drain plug (1), then install the standard drain hose.

Set a container in position to catch the oil, then loosen drain the valve (2) slowly to avoid getting oil on yourself, and drain the oil.

Check the drained oil, and if there are excessive metal particles or foreign material, please contact your Komatsu distributor.

Remove the drain hose, then tighten drain valve (2) and drain plug (1).

Using the filter wrench, turn filter cartridge (3) to the left and remove it.

Clean the filter holder, fill the new filter cartridge with oil, then coat the seal and thread of the filter cartridge with oil (or coat thinly with grease) and install.

When installing the filter cartridge, tighten until the packing face is in contact with the filter holder, then tighten a further 3/4 - 1 turn.
