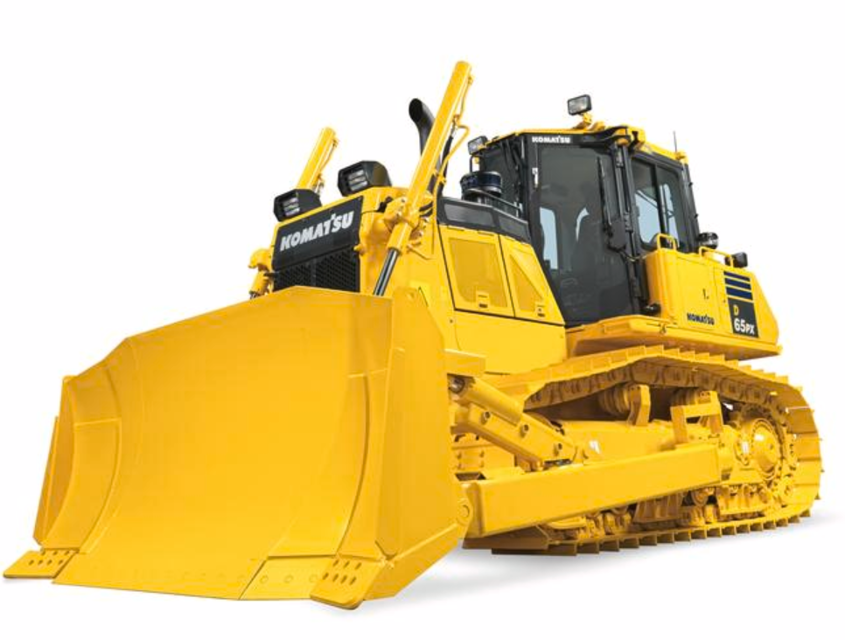

Komatsu Bulldozer D65PX-18

Parts replaced every 2 years or every 4000 hours?

Water pump checked for leakage?

METHOD FOR CHECKING STARTING MOTOR

METHOD FOR REPLACING ACCUMULATOR (FOR CONTROL CIRCUIT)

METHOD FOR CHECKING, CLEANING AND REPLACING AIR CLEANER

• If inspection, cleaning, or maintenance is performed while the engine is running, dust enters into the engine and damages it. Be sure to stop the engine before performing these works.

• When using compressed air, there is a danger that dirt may scatter and cause personal injury. Always wear protective equipment such as protective eyeglasses and dust mask.

• When working in high places or where the foothold is poor, be careful not to fall because of the reaction when pulling out the element.

Do not clean the element before the air cleaner clogging caution lamp lights up or the yellow piston of the dust indicator laps over the peripheral red zone.

If the element is cleaned before the above, the air cleaner cannot display its normal performance and the cleaning effect decreases.

Warning: Immediately after the engine is stopped, its parts and oil are still very hot and may cause burn injury. Wait until they have cooled down before starting the work.

Warning: The undercover is a heavy part (22 kg (48.5 lb)). Do not open or close the cover just under it.

Warning: When removing drain plug (5) of the damper case, take care not to get oil over yourself.

Refill capacity: 1.7 l (0.45 U.S.Gal)

Undercover removed from the lower rear side of the machine?

Oil level plug (3) and oil filler plug (4) removed?

Drain plug (5) removed and oil drained?

Drain plug (5) installed after draining the oil?

New oil added through the oil filler port until the oil level reaches the bottom edge of oil level plug (3)?

Greasing points of straight tilt dozer and sigma dozer

Lubrication points of straight tilt power pitch dozer and sigma power pitch dozer

Lubricating points of angle dozer

Lubricating points of power angle power tilt dozer

METHOD FOR LUBRICATING EQUALIZER BAR SIDE PIN

METHOD FOR LUBRICATING EQUALIZER BAR CENTER PIN

METHOD FOR CHECKING OIL LEVEL IN FINAL DRIVE CASE, ADDING OIL

METHOD FOR CHECKING BATTERY ELECTROLYTE LEVEL

Warning: Immediately after the engine is stopped, its parts and oil are still very hot and may cause burn injury. Wait until they have cooled down before starting the work.

Warning: The undercover is a heavy part (22 kg (48.5 lb)). Do not open or close the cover just under it. When removing bolts, perform the work from the rear of the cover so that you can easily get out of the way.

Cover removed on the lower rear side of the machine?

Oil container placed under drain plug?

Drain valve loosened and oil drained?

Drain plug tightened after draining the oil?

Undercover removed on the lower rear side of the machine?

Bolts on the front side of the machine removed?
