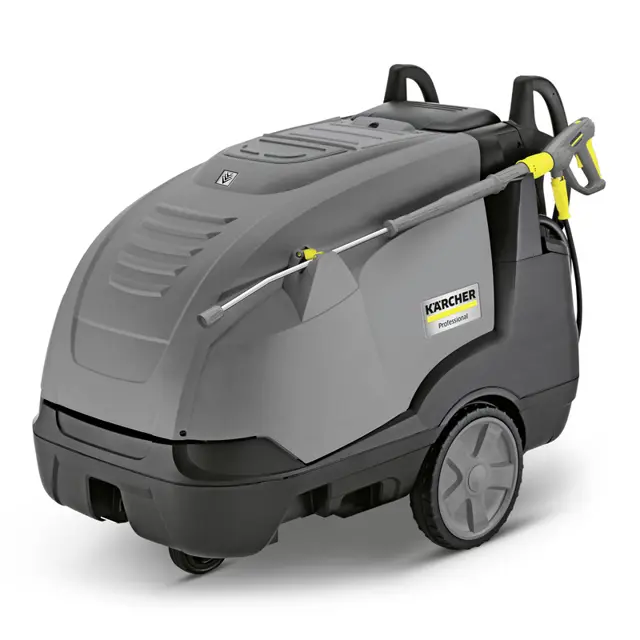

Karcher High-Pressure Washer HDS-E 3.3/25-4M Ef

ATTENTION! Risk of damage! In case of lacteous oil inform Kärcher customer service immediately

Sieve in the water connection cleaned

DANGER! Risk of injury by inadvertent start-up of appliance and electric shock. Prior to all work on the appliance, switch off the appliance and pull the power plug

Pump switched on and allowed to run for about 5-10 seconds

Appliance switch set to '0/OFF'

Main plug pulled out of socket with dry hands only

Hand spray gun activated until device is pressure less

Clean filter at the detergent suck hose

Take out detergent suck supports

Clean filter in water and reinstall

Sign off on the filter cleaning

Loosen covering nut and take off hose

Note: If necessary turn in screw M8 appr. 0.2 in/5 mm inwards and therewith pull out sieve

ATTENTION! Risk of damage! In case of lacteous oil inform Kärcher customer service immediately

Fine filter unscrewed from the boiler

Fine filter and filter insert removed

Filter cleaned with clean water or compressed air

Reinstalled in reverse sequence

Sign off on the fine filter cleaning
