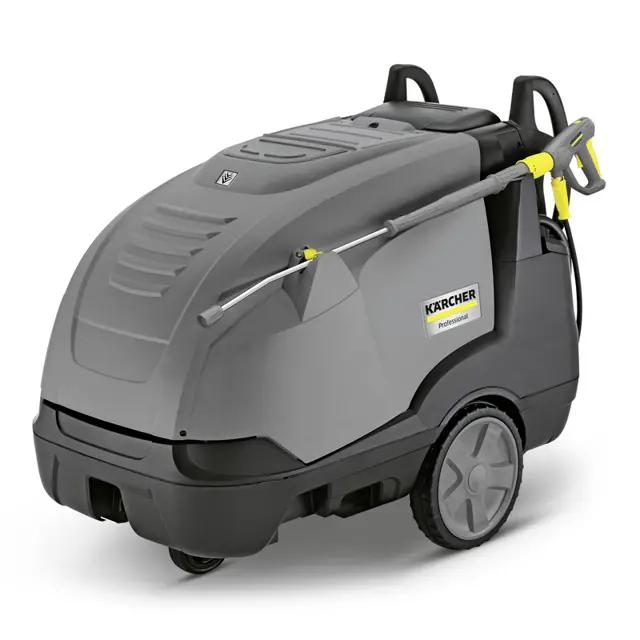

Karcher High-Pressure Washer HDS-E 3.3/25-4M Ec

Need answers fast?
Explore the manual using AI.

Karcher High-Pressure Washer HDS-E 3.3/25-4M Ec
Karcher High-Pressure Washer HDS-E 3.3/25-4M Ec

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Karcher High-Pressure Washer HDS-E 3.3/25-4M Ec

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Karcher High-Pressure Washer HDS-E 3.3/25-4M Ec

Karcher High-Pressure Washer HDS-E 3.3/25-4M Ec

Create an account to install this asset package.

Maintenance Plans for Karcher High-Pressure Washer Model HDS-E 3.3/25-4M Ec

Integrate maintenance plans directly into your work orders in MaintainX.

1 Weekly Fine Filter Cleaning

Check mark

ATTENTION! Risk of damage! In case of lacteous oil inform Kärcher customer service immediately

Check mark

Unpressurize the appliance

Check mark

Unscrew the fine filter from the boiler

Check mark

Remove the fine filter and the filter insert

Check mark

Clean the filter with clean water or compressed air

Check mark

Reinstall in reverse sequence

Check mark

Note: Check Oil Level

Run this procedureArrow right

1 Monthly Safety Block Sieve Cleaning

Check mark

Unpressurize the appliance

Check mark

Loosen covering nut and take off hose

Check mark

Take out sieve

Check mark

Note: If necessary turn in screw M8 appr. 0.2 in/5 mm inwards and therewith pull out sieve

Check mark

Clean sieve in water

Check mark

Push sieve inwards

Check mark

Put on hose

Check mark

Tighten covering nut firmly

Check mark

Sign off on the sieve cleaning

Run this procedureArrow right

500 Hourly / 1 Yearly Oil Change

Check mark

Warning: Always wear protective gloves and goggles when performing this procedure.

Check mark

Is the oil change due (500 operating hours or 1 year)?

Check mark

If not, skip the procedure and check again later.

Check mark

Is a catch bin ready for approximately 0.26 gal/1 Liter of oil?

Check mark

Has the release screw been loosened?

Check mark

Dispose of old oil ecologically or turn in at a gathering point.

Check mark

Has the release screw been tightened?

Check mark

Fill oil slowly up to the MAX marking. Enter the amount of oil added.

Check mark

Note: Air pockets must be able to leak out.

Run this procedureArrow right

Washer Maintenance

Check mark

DANGER! Risk of injury by inadvertent start-up of appliance and electric shock.

Check mark

Switch off the appliance and pull the power plug

Check mark

Shut off water supply

Check mark

Open the hand spray gun

Check mark

Switch on the pump with the power switch and allow to run for about 5-10 seconds

Check mark

Close the hand spray gun

Check mark

Set the appliance switch to '0/OFF'

Check mark

Pull main plug out of socket with dry hands only

Check mark

Remove water connection

Run this procedureArrow right

1 Weekly Water Connection Sieve Cleaning

Check mark

Warning: Risk of damage! In case of lacteous oil inform Kärcher customer service immediately

Check mark

Clean the sieve in the water connection

Check mark

Take out sieve

Check mark

Clean sieve in water and reinstall

Check mark

Sign off on the sieve cleaning

Run this procedureArrow right

Parts for Karcher High-Pressure Washer HDS-E 3.3/25-4M Ec

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Hardness Tester

6.768-004

Hardness Tester

6.768-004

Hardness Tester

6.768-004
