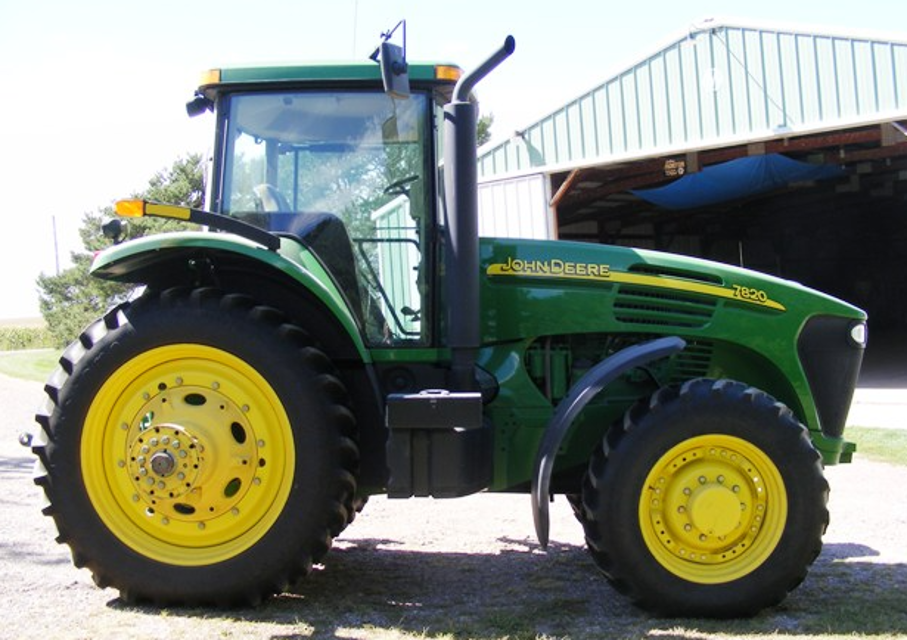

John Deere Large Frame Row-Crop Tractor 7820
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for John Deere Large Frame Row-Crop Tractor 7820
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
John Deere Large Frame Row-Crop Tractor 7820
Create an account to install this asset package.
Maintenance Plans for John Deere Large Frame Row-Crop Tractor Model 7820
Integrate maintenance plans directly into your work orders in MaintainX.
300 Hourly / 1 Yearly Large Frame Row-Crop Tractor Replacement
Engine Final Fuel Filter replaced
Engine Primary Fuel Filter replaced
Cab Recirculation Air Filter replaced (every 1000 hours or annually and as required)
Engine Primary Air Filter replaced (every 1000 hours or annually and as required)
Engine Secondary Air Filter replaced (every second replacement of primary filter)
Cab Fresh Air Filter replaced (every 600 hours, annually or as required)
Cab Air Filter replaced (every 600 hours, annually or as required)
Sign off on the tractor replacement
150 Hourly and as required Large Frame Row-Crop Tractor Maintenance
Cab Fresh Air Filter cleaned
Cab Air Filter cleaned
Cab Recirculation Air Filter cleaned (every 250 hours or as required)
Engine Oil Filter changed (every 250 hours or as required)
Sign off on the tractor maintenance
750 Hourly Large Frame Row-Crop Tractor Replacement
Replace Transmission (Pq/Aq) Filter Element
Replace Transmission (Ivt) Filter Element
Replace Hydraulic Oil Filter
Replace Engine Final Fuel Filter
Replace Engine Primary Fuel Filter
Replace Oil Filter Front Pto
Sign off on the replacement procedure
Initial 100 Hours Large Frame Row-Crop Tractor Replacement
Replace Transmission (Pq/Aq) Filter Element
Replace Transmission (Ivt) Filter Element
Replace Hydraulic Oil Filter
Replace Engine Oil Filter
Replace Oil Filter Front Pto
Sign off on the replacement procedure
Parts for John Deere Large Frame Row-Crop Tractor 7820
Access the parts list for your equipment in MaintainX.
Cab Fresh Air Filter
RE237396
Cab Air Filter
RE24619
Cab Recirculation Air Filter
RE187966
Transmission (Pq/Aq) Filter Element
RE205726
Transmission (Ivt) Filter Element
RE161181
Cab Fresh Air Filter
RE237396
Cab Air Filter
RE24619
Cab Recirculation Air Filter
RE187966
Transmission (Pq/Aq) Filter Element
RE205726
Transmission (Ivt) Filter Element
RE161181
Cab Fresh Air Filter
RE237396
Cab Air Filter
RE24619
Cab Recirculation Air Filter
RE187966
Transmission (Pq/Aq) Filter Element
RE205726
Transmission (Ivt) Filter Element
RE161181
