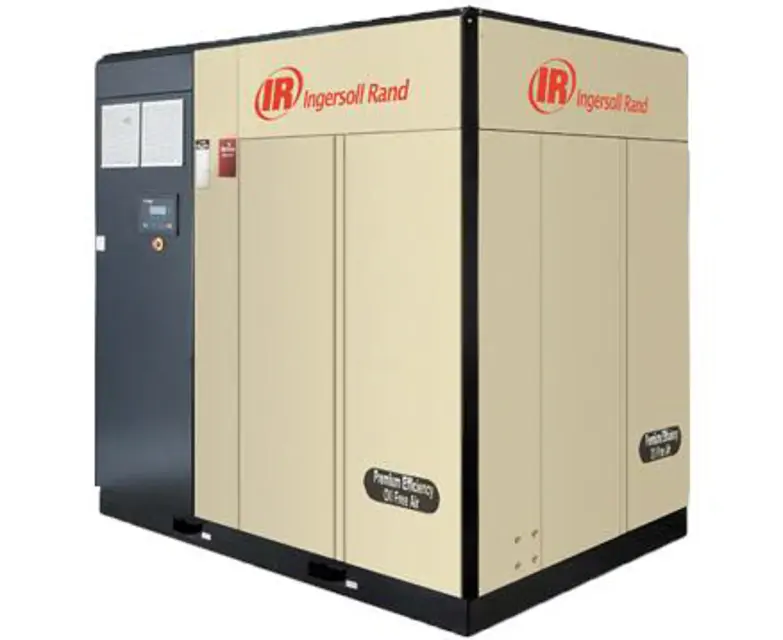

Ingersoll Rand Compressor N200H Single Stage

Rotate the blower motor several revolutions by hand in the direction of rotation

Pump grease into the bearing while rotating the motor

Is grease visible at the relief port?

Rotate the motor every three months until the unit is placed in service

Long-term Storage Consideration

Is the storage time expected to exceed nine months?

Order the compressor for long-term storage if storage exceeds nine months

Loosen filter element with the correct tool

Remove the element from the housing

Place the old element in a sealed bag and dispose of in a safe way

Clean the mating face of the housing

Remove the new Ingersoll Rand replacement element from its protective package

Apply a small amount of coolant to the element seal

Screw the new element down until the seal makes contact with the housing, then hand tighten a further half turn

Ensure the coolant filter and coolant are not too hot before proceeding

Remove the cap from the drain valve located at the front of the separator vessel

Place a suitable container close to the drain valve

Screw the coolant drain hose onto the drain valve

Ensure the valve automatically opens and the coolant drains

Remove the drain hose and ensure the valve automatically closes and seals

Replace the cap on the drain valve

Check coolant level in sight glass while machine is running on load

Is coolant visible in the sight glass while machine is running?

Coolant Level Verification After Stopping Machine

Is coolant still visible in the sight glass after stopping the machine?

Run the compressor for a minimum of 40 seconds

Is coolant visible in the sight glass after running the compressor?

Disconnect tubing at each end of check valve/screen/orifice assembly

Orifice Inspection and Cleaning

Check orifice for cleanliness and condition

Use suitable tool to remove orifice from its housing

Ensure no damage to flared end of fitting or O-ring
