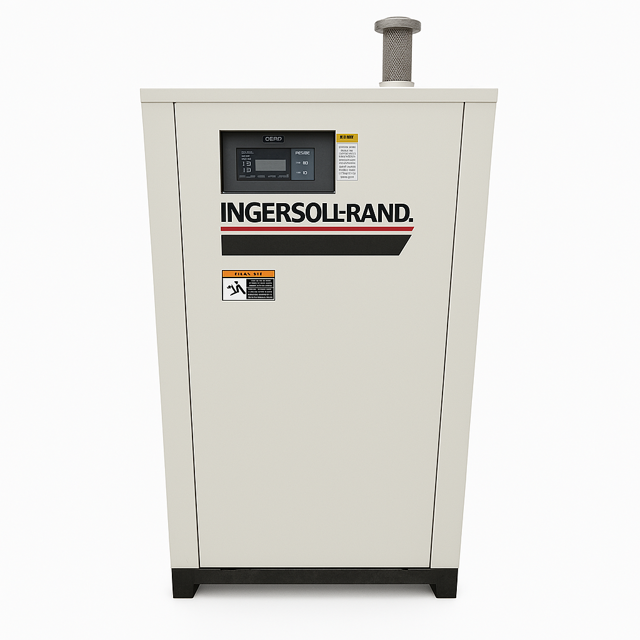

Ingersoll Rand Refrigarated Air Dryer DXR600

Need answers fast?
Explore the manual using AI.

Ingersoll Rand Refrigarated Air Dryer DXR600
Ingersoll Rand Refrigarated Air Dryer DXR600

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Ingersoll Rand Refrigarated Air Dryer DXR600

Ingersoll Rand Refrigarated Air Dryer DXR600

Create an account to install this asset package.

Maintenance Plans for Ingersoll Rand Refrigarated Air Dryer Model DXR600

Integrate maintenance plans directly into your work orders in MaintainX.

4500 Hourly / 6 Monthly Dryer Maintenance

Check mark

Service Due Indicator

Check mark

Yellow SERVICE DUE indicator light on

Check mark

If the SERVICE DUE indicator is on, complete the following steps

Check mark

Disassemble and clean automatic drain valve

Check mark

Disassemble and clean separator bowl (models DXR150 and larger)

Check mark

Inspect the condenser coils, clean if necessary

Check mark

Lubricate fan motors with 20 wt motor oil (if necessary)

Check mark

Clean customer-supplied strainer

Check mark

To reset the SERVICE DUE INDICATOR, follow these steps

Run this procedureArrow right

1 Yearly Prefilter Element Replacement

Check mark

DANGER! Vent internal pressure to atmospheric pressure before performing any maintenance.

Check mark

Is the filter isolated by opening the bypass valve and closing both isolation valves?

Check mark

Is the pressure bleed valve open to vent the filter to atmospheric pressure?

Check mark

Disconnect drain lines at manual and automatic drain valves (if installed).

Check mark

DANGER! A 'hissing' sound while the bowl is being removed indicates the filter has not been properly depressurized. DO NOT continue to remove the bowl until the filter has been completely vented to atmospheric pressure.

Check mark

Remove the bottom bowl by unscrewing it from the head. A strap wrench may be needed.

Check mark

Remove the element from the filter head with a brisk downward pull, or by working the element back and forth until it snaps free. Discard the element in accordance with applicable regulations.

Check mark

Clean accumulated debris from the bowl with soap and water, and dry thoroughly.

Check mark

CAUTION! Lubricate the element O-ring with a petroleum-based lubricant that is compatible with your application.

Run this procedureArrow right

Ambient Air Filter Replacement

Check mark

Warning: Only perform this procedure if your unit is equipped with the optional ambient air filter (designated by the suffix F in the model number)

Check mark

Inspect the filter element. Is it in good condition?

Check mark

If the filter element is not in good condition, replace it.

Check mark

Enter the model number of the replacement element

Check mark

Record the date of the element change

Check mark

Upload a photo of the 'Element Change' label with the updated information

Check mark

Sign off on the filter replacement

Run this procedureArrow right

1 Daily Dryer Maintenance

Check mark

DANGER: Dismantling or working on any component of the compressed air system under pressure may cause equipment failure and serious personal injury. Before dismantling any part of the dryer or compressed air system, completely vent the internal pressure to the atmosphere.

Check mark

For continued good performance of your refrigerated dryer, all refrigeration system maintenance should be performed by a competent refrigeration mechanic.

Check mark

Before corrective maintenance is done during the warranty period, call your local distributor and proceed according to instructions. Refer to the warranty for limits of your coverage.

Check mark

Check the operation of the automatic drain valve at least once during each 8-hour shift.

Check mark

On models 75 to 100 scfm, inspect and clean (if necessary) the drain valve strainer. See the Field Service Guide for remedies to drain valve malfunctions. See the Instrumentation section for drain valve adjustment.

Check mark

For models with the System Operation Monitor, check the following readouts.

Check mark

High evaporator temperature

Check mark

Refrigerant suction temperature

Check mark

Refrigerant discharge temperature

Run this procedureArrow right

1 Weekly Dryer Maintenance

Check mark

Prefilter differential pressure gauge checked

Check mark

Filter element replaced when pointer reaches red zone of gauge (approx. 7 to 10 psid)

Check mark

Failure to change element at least once a year or when the gauge reaches the red zone will adversely affect dryer performance.

Check mark

Internal float drain valve on the prefilter inspected every two to three weeks for excessive oil and water

Check mark

Test valve on the bottom of the filter unit pressed

Check mark

More than one or two drops of oil leaked out?

Check mark

If more than one or two drops of oil leak out, the drain valve should be cleaned or replaced as required.

Check mark

Sign off on the weekly dryer maintenance

Run this procedureArrow right

Parts for Ingersoll Rand Refrigarated Air Dryer DXR600

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Filter-Dryer

7DE30AP

Expansion Valve

7DE305BW

Hot Gas Bypass Valve

7DE315AF

High Evap Light

7DE130FS

Power On Light

7DE130FR

Filter-Dryer

7DE30AP

Expansion Valve

7DE305BW

Hot Gas Bypass Valve

7DE315AF

High Evap Light

7DE130FS

Power On Light

7DE130FR

Filter-Dryer

7DE30AP

Expansion Valve

7DE305BW

Hot Gas Bypass Valve

7DE315AF

High Evap Light

7DE130FS

Power On Light

7DE130FR
