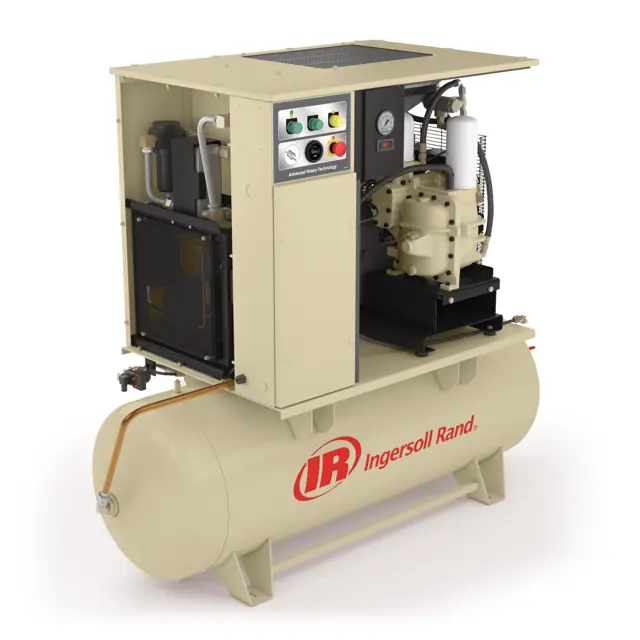

Ingersoll Rand Compressor UP6 30

Change drive belt and gas spring.

BELT CHANGE / GAS STRUT CHANGE PROCEDURE

1. Stop the machine, electrically isolate and vent all trapped pressure.

2. Remove the side cover from the machine.

3. Fit a 1/2” square drive wrench in the tension cam located above the airend (access from front door). Turn clockwise 1/4 turn to Position II to release gas strut tension on the belts.

4. Using a small screwdriver under the spring clip, ease the ball ends off the spherical studs at the ends of the gas strut.

5. Replace the gas strut and the studs at the same time by removing and replacing the studs then pushing the new gas strut firmly onto the studs until it clicks into place.

6. Turn the tension cam clockwise 1/4 turn to Position III to raise and support the airend. Place a block of wood or similar under the separator tank for support.

7. Replace the belts from the left side of the machine.

Machine stopped, electrically isolated and all trapped pressure vented?

Filter loosened with the correct tool?

Filter removed from the housing?

Old filter placed in a sealed bag and disposed of in a safe way?

Mating face of the housing cleaned, avoiding any particles entering the machine?

New Ingersoll Rand replacement filter removed from its protective package?

Small amount of lubricant applied to the filter seal?

New filter screwed down until the seal makes contact with the housing, then hand tightened a further half turn?

Visual check condition of package pre–filter

Does the air filter indicator lock into the red position before the 2000 hour/1 year change out period?

Change the air filter if needed

Separator vessel and air receiver when fitted. Fully inspect all external surfaces, and fittings

Report any excessive corrosion, mechanical or impact damage, leakage or other deterioration

Close the strainer ball valve completely to isolate it from the air receiver tank

Strip, clean and re–Grease motor bearings on motors with grease fittings

Replace sealed bearing on motors without grease fittings

Fit replacement electrical contactor tips

1. Stop the machine, electrically isolate and vent all trapped pressure.

2. Loosen filter with the correct tool.

3. Remove the filter from the housing.

4. Place the old filter in a sealed bag and dispose of in a safe way.

5. Clean the mating face of the housing taking care to avoid any particles entering the machine.

6. Remove the new Ingersoll Rand replacement filter from its protective package.

7. Apply a small amount of lubricant to the filter seal.

8. Screw the new filter down until the seal makes contact with the housing, then hand tighten a further half turn.
