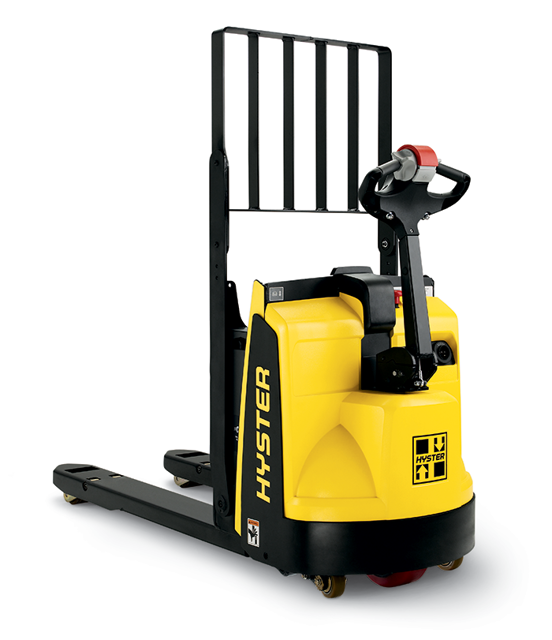

Hyster-Yale Hyster-Yale Lift Truck W45Z-HD W45Z-HD
Need answers fast?
Explore the manual using AI.
The Hyster-Yale Lift Truck W45Z-HD is a robust and reliable forklift designed for heavy-duty applications. Known for its durability and efficiency, this model excels in warehouse and industrial environments, ensuring optimal performance and safety in material handling tasks.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Hyster-Yale Hyster-Yale Lift Truck W45Z-HD W45Z-HD
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Hyster-Yale Hyster-Yale Lift Truck W45Z-HD W45Z-HD
Create an account to install this asset package.
Maintenance Plans for Hyster-Yale Hyster-Yale Lift Truck W45Z-HD Model W45Z-HD
Integrate maintenance plans directly into your work orders in MaintainX.
2000 Hours/2 Yearly Maintenance
Load Wheel Bearings
Bearings disassembled, cleaned, and inspected for wear or damage
Bearings packed with grease and assembled
Drive Unit Gear Oil
Truck kept level and drip pan placed under front end of the truck
Oil drained
Drive unit cover removed
Drain and fill plugs removed to drain gear oil
Amount of gear oil added
8 Hours Maintenance
Hydraulic Fluid Leaks
Tires Condition
Forks Condition
Load Backrest - Cracks and Mounting
Hydraulic Hoses and Fittings - Inspect for Leaks and Damaged or Defective Components
Safety Warnings - Attached
Battery - Water/Electrolyte Level
Battery - Charge
Hydraulic Reservoir Fluid Level
2000 Hourls Maintenance
Clean and Repack Load Wheel Bearings
Contactors - Tips and Wire Connections - Tightness and Corrosion
All Bolts, Nuts, Cotter Pins, Etc.
Sign off on the 2000 hours maintenance
350 Hours Maintenance
Lubricate - Chassis (All Fittings)
All Linkage and Load Wheels
Hydraulic Reservoir Oil Level
Hydraulic Reservoir Breather
Caster Wheel Clearance
Drive Unit Oil Level
Hydraulic Pump for Noise and Operation
Hydraulic Control Valve for Leaks and Operation
Relief Valve Settings
350 Hours/6 Monthly Maintenance
Refer to Capacities and Specifications 8000 SRM 1010 for proper specifications on lubrication requirements for the lubrication fittings. Clean the lubrication fittings before and after lubricating.
Check Hydraulic Oil Level
Hydraulic System Check - Check the hydraulic oil level when the oil is at normal operating temperature and forks are in the lowered position.
Remove drive unit cover. Remove breather cap from hydraulic pump and reservoir. Add hydraulic oil, if necessary, through the breather filler pipe until oil is at Full mark on reservoir. Install breather cap and tighten. DO NOT OVERFILL.
Hydraulic Reservoir Breather - Remove drive unit cover. Remove breather and clean with a suitable cleaning solution, blow dry with compressed air, and install. Replace breather if it cannot be cleaned or is damaged.
Drive Unit (Initial 350 hour check) - Keep truck level. Place a drip pan under front end of the truck and drain the oil. Remove drive unit cover. Remove drain and fill plugs to drain gear oil. Replace drain. Add gear oil through fill plug until oil runs out. Replace fill plug. Drive unit capacity is 0.18 liter (6 oz). DO NOT OVERFILL.
Drive Unit - With the truck level, remove the fill plug and check the oil level, add gear oil until full. DO NOT OVERFILL.
Sign off on the 350 Hours/6 Monthly Maintenance
Parts for Hyster-Yale Hyster-Yale Lift Truck W45Z-HD W45Z-HD
Access the parts list for your equipment in MaintainX.
Master Drive Unit Assembly
4626898
Capscrew
3693242
Stud
4033024
Washer
375629
Nut
1502543
Master Drive Unit Assembly
4626898
Capscrew
3693242
Stud
4033024
Washer
375629
Nut
1502543
Master Drive Unit Assembly
4626898
Capscrew
3693242
Stud
4033024
Washer
375629
Nut
1502543
