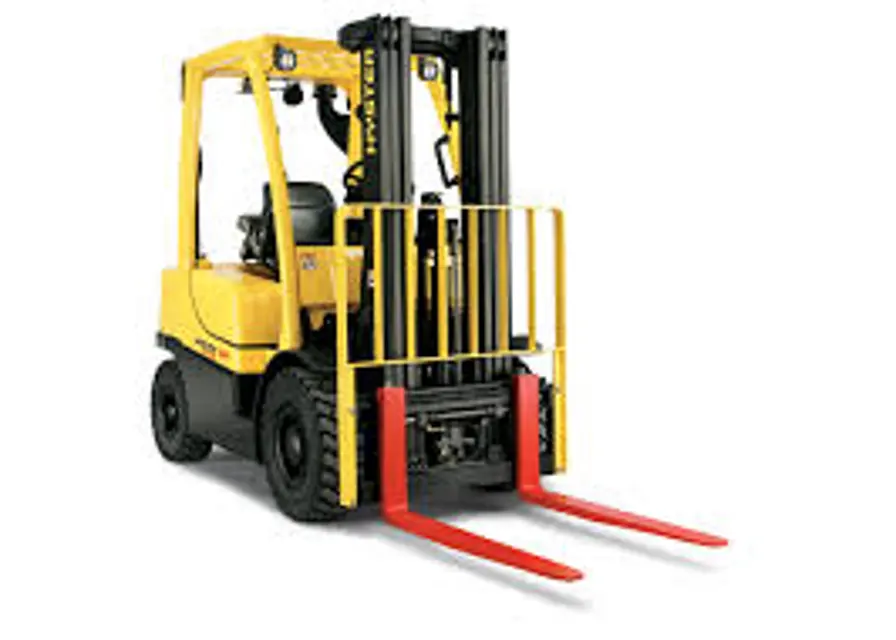

Hyster-Yale Lift Truck H50FT

Change Hydraulic Oil S40-70FT, S55FTS (F187)

Enter the amount of ISO VG 46 Hydraulic Oil used in liters

NOTE 2: Heavy-duty or high-temperature operations require more frequent checks

NOTE 3: Heavy-duty or contaminated applications will require hydraulic oil change at 2000 hours

NOTE16: Hydraulic oil sampling and analysis is a recommended practice.

NOTE 17: If lift truck is used in Paper Application use ONLY JDM J20C type fluid for both the transmission and hydraulic system

Inspect and replace as required Hydraulic Tank Breather

Change Cooling System Mazda 2.0L and 2.2L Engine (Serpentine and Square Wave, Square Wave with Air Cooler), GM 2.4L Engines, Yanmar 2.6L and 3.3L Engines

Enter the amount of Ethylene Glycol Boron-free Antifreeze used in liters

Adjust valve as required on Mazda 2.0L and 2.2L Engines (gas/LPG). Intake 0.15 mm (0.006 in.) Cold Exhaust 0.35 mm (0.014 in.)Cold

Adjust valve as required on Yanmar 2.6L and 3.3L Diesel Engines. Intake 0.20 mm (0.008 in.) Cold Exhaust 0.20 mm (0.08 in.)Cold

Adjust timing as required on Mazda 2.0L and 2.2L Engines (gas/LPG). 6° +1° BTDC (Orange Mark)

Change LPG fuel filter on Mazda 2.0L and 2.2L Engines (2007 Emission Compliant Engines Only)

Change LPG fuel injector vapor filter on Mazda 2.0L and 2.2L Engines (Except 2007 Emission Compliant Engines)

Change fuel filter on GM 2.4L Engines (LPG)

Change fuel filter on Mazda 2.0L and 2.2L Engines (2007 Emission Compliant Engines Only) (GAS)

Change Fuel water separator on Yanmar 2.6L and 3.3L Diesel Engines

Change In-line fuel filter on Yanmar 2.6L and 3.3L Diesel Engines

Check Hydraulic Oil S40-70FT, S55FTS (F187), 30.1 liter, (31.8 qt)

Check Hydraulic Oil S40-70FT, S55FTS (F187), 39.8 liter, (31.8 qt)

NOTE 2: Heavy-duty or high-temperature operations require more frequent checks

NOTE 3: Heavy-duty or contaminated applications will require hydraulic oil change at 2000 hours

NOTE16: Hydraulic oil sampling and analysis is a recommended practice.

NOTE 17: If lift truck is used in Paper Application use ONLY JDM J20C type fluid for both the transmission and hydraulic system

Inspect and replace as required Hydraulic Tank Breather

Note 5: Recommended service intervals are based on a normal application in a clean environment.

Clean Battery and Cable Terminals

Replace as Necessary Safety Labels

Check Condition and Lubrication of Mast, Carriage, Header Hoses, Lift Chains and Attachment

Check Condition and Operation of Seat belt, Hip Restraints and Seat Rails

Check Condition and Operation of Hood and Seat Latches

Remove Combustible Materials from Engine Compartment

Check Condition of the Paper Application; Engine Compartment; Truck Components; Exhaust Wraps; Radiator; Radiator Screen, if equipped; Belly Pan, if equipped

Check for Leaks. Fuel, Oil and Water

Check Condition of the Hydraulic Hoses

Warning: This maintenance check requires trained personnel with PPE!

Change engine oil for Mazda 2.0L and 2.2L Engine (Gas/LPG)

Select the appropriate oil type

Change transmission oil filter after first 500 hours of operation

Note: Recommended service intervals are based on a normal application in a clean environment.

Change engine oil for GM 2.4L Engines (Gas/lpg)

Check for wear and damage drive belt of GM 2.4L Engines (Gas/lpg) and Mazda 2.0L and 2.2L Engine (Gas/LPG)

Check LPG regulator (Drain Tar), Engine idle speed (800+/-25 RPM) and governed speed(2700+/-25RPM) of Mazda 2.0L and 2.2L Engine (Gas/LPG) and GM 2.4L Engines (Gas/lpg)

Sign off on the 250 Hours/6 Monthly Maintenance
