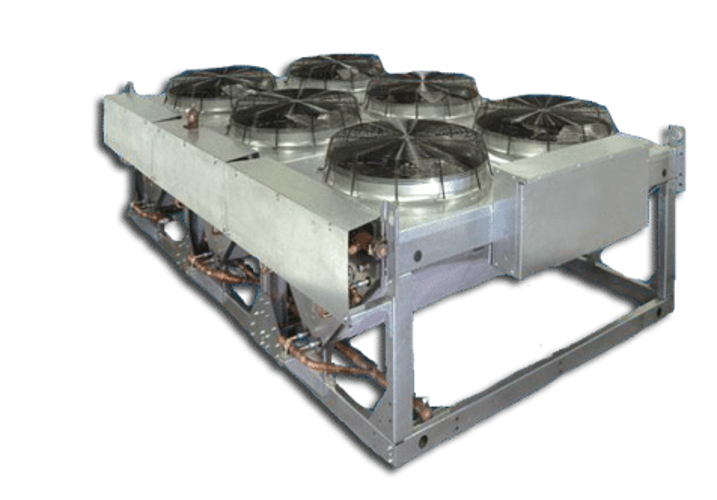

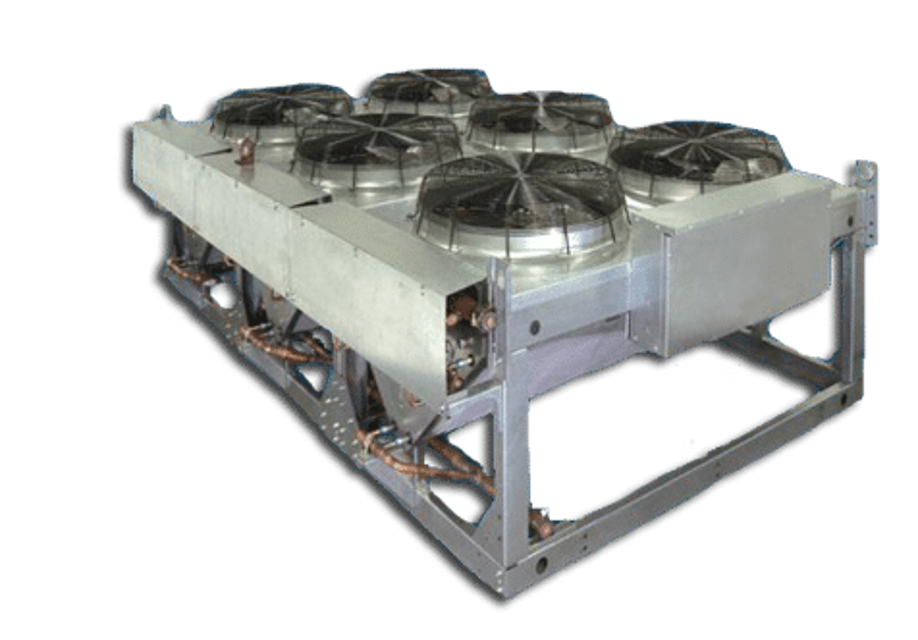

Hussmann Remote Air-Cooled Condenser MXK-14

- For maximum efficiency, air-cooled condensers should be cleaned of lint and dust every 4 to 6 months so that airflow is not restricted. More frequent cleaning may be necessary under severe conditions.

WARNING: No chemical cleaners should be used at any time on the coil as severe damage may occur.

• Improper service and maintenance may cause personal and/or property damage.

• Contact qualified installer, servicer or distributor for information or assistance.

• Always wear gloves, protective clothing and safety glasses.

• Employ dust mask as required.

• Have quenching cloth and fire extinguisher available.

• Follow all Local and National building and electrical codes Electrical

Warning: Ensure the power is off before starting the inspection.

Check if the electrical power disconnect switch is in the “OFF” position.

Check if all power to the unit is off from the source.

Inspect electrical connections and tighten if required.

During the unit startup phase, check the fans for the correct rotation.

Check if the fans are pushing the air into the coil surface.

If the fans are pushing the air into the coil surface, the fans are rotating in the wrong direction and the motor wiring needs to be corrected.
