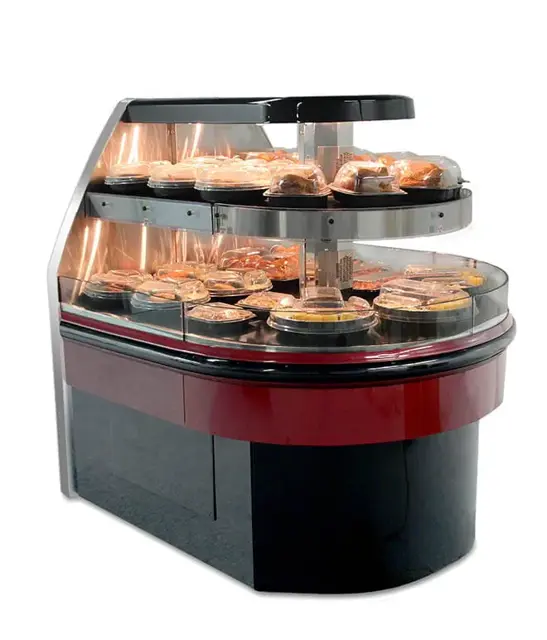

Hussmann Hot Island End Case TY3-4X6I-H

Unit allowed to cool before cleaning

Unit not submerged or saturated with water

Non-abrasive cleaner used for surface stains

Small brush and mild soap used for hard to reach areas

NOTICE! Use non-abrasive cleaners only

DANGER! ALWAYS DISCONNECT ELECTRICAL POWER AT THE MAIN DISCONNECT WHEN SERVICING OR REPLACING ANY ELECTRICAL COMPONENT. This includes (but not limited to) Fans, Heaters, Thermostats, and Lights.

• Extra overhead lamps are designed to last through many hours of use.

• Should there be a need to replace one of the heated lamps, bulbs are located behind the side access panel.

• Use 100 watt bulbs only, 20,000 hours average service life is recommended for long life.

• Keep extra 100 watt bulbs on hand to replace a failed one immediately

CAUTION! The Heat lamps used in these cases get EXTREMELY HOT! NEVER touch a lamp until the case has had ample time to cool down! It is also highly recommended to handle lamps with gloves or use a cloth rag - not just for the heat factor, but also the oils in your fingers will drastically shorten the life of the lamp.

1. Turn light switch to OFF before replacing any lighting components.

2. Using a protective glove,disconnect light bulb by unscrewing it counter clockwise and gently remove it from lamp holder

3. Insert new light bulb by inserting it into the lamp holder and turning it clockwise until snug.Do Not Overtighten!
