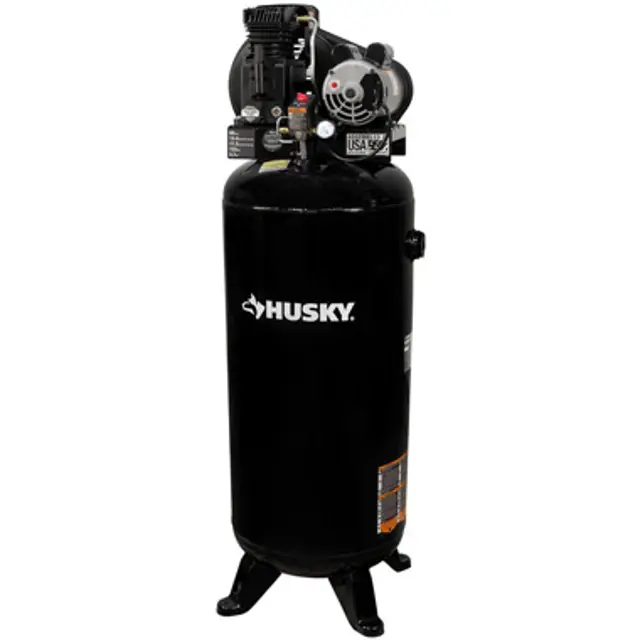

Husky 60-Gallon Stationary Air Compressor C602H

Drain the air tank of moisture after operation

Store the compressor in a cool, dry place when not in use

Disconnect the air hose and hang open ends down to allow any moisture to drain

Protect the electrical cord and air hose from damage (such as being stepped on or run over)

Sign off on the air compressor care and cleaning

WARNING: Serious injury or damage may occur if parts of the body or loose items get caught in moving parts. Never operate the outfit with the belt guard removed.

Air compressor power is disconnected

All air pressure is relieved from the air tank

Four fasteners from the belt guard are removed

Front belt guard is lifted up and away from the unit

Pump position is marked on the saddle

Motor mounting screws are loosened and motor is slid toward the air compressor

WARNING: When servicing, use only identical Husky replacement parts. Use of any other parts may create a hazard or cause product damage.

WARNING: Always release all pressure, disconnect from power supply, and allow unit to cool to the touch before cleaning or making repairs on the air compressor.

WARNING: Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

Electric tools used on fiberglass material, wallboard, spackling compounds, or plaster are subject to accelerated wear and possible premature failure because the fiberglass chips and grindings are highly abrasive to bearings, brushes, commutators, etc.

Condensate forms in the tank when there is humidity in the air. Depending on the environmental conditions, drain the condensate daily and/or every hour.

The safety valve automatically releases air when the receiver pressure exceeds the preset maximum.

Inspect the tank annually for rust, pin holes, or other imperfections that could cause it to become unsafe.

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.

Use clean cloths to remove dirt, dust, oil, grease, etc.

NOTICE: Even minor leaks can cause the air compressor to overwork, resulting in premature breakdown or inadequate performance.

Turn the air compressor off, lock out the power supply, and relieve all air pressure from the air tank.

Apply a soap solution to all air line fittings and connections/piping.

Sign off on the air lines and fittings inspection

Warning: Ensure the grooves of the flywheel and pulley are aligned to within 1/16 in. (1.6 mm) to prevent excessive belt wear.

Motor aligned with the mark made earlier on the saddle?

Enter the deflection of the belt in inches

Enter the weight applied at the midway point in pounds

Enter the torque applied to the motor mounting screws in ft-lbs

Sign off on the belt tension adjustment
