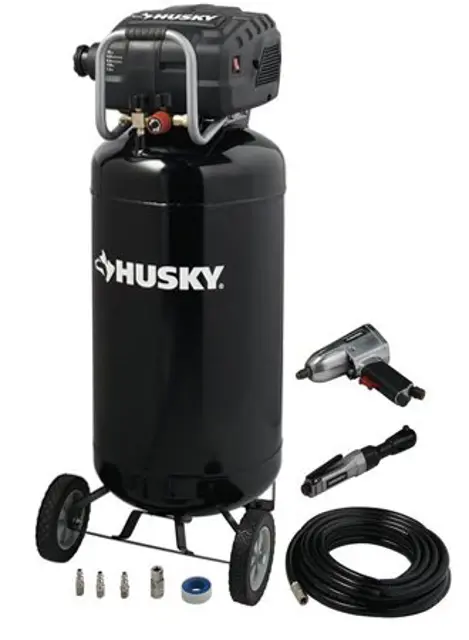

Husky 26-Gallon Portable Air Compressor 671-049

WARNING: When servicing, use only identical Husky replacement parts. Use of any other parts may create a hazard or cause product damage.

WARNING: Do not attempt to modify this product or create

Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. If operation is dusty, also wear a dust mask.

WARNING: Always release all pressure, disconnect from power supply, and allow unit to cool to the touch before cleaning or making repairs on the air compressor.

Inspect the tank yearly for rust, pin holes, or other imperfections that could cause it to become unsafe.

WARNING: Do not at any time let brake fluids, gasoline, petroleumbased products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

Electric tools used on fiberglass material, wallboard, spackling compounds, or plaster are subject to accelerated wear and possible premature failure because the fiberglass chips and grindings are highly abrasive to bearings, brushes, commutators, etc. Consequently, we do not recommended using this tool for extended work on these types of materials. However, if you do work with any of these materials, it is extremely important to clean the tool using compressed air.

Sign off on the tank inspection

WARNING: When servicing, use only identical Husky replacement parts. Use of any other parts may create a hazard or cause product damage.

WARNING: Do not attempt to modify this product or create

Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. If operation is dusty, also wear a dust mask.

WARNING: Always release all pressure, disconnect from power supply, and allow unit to cool to the touch before cleaning or making repairs on the air compressor.

Humidity in the air causes condensate to form in the air tank. This condensate should be drained daily and/or every hour, using the instructions found in Draining the Tank.

The pressure relief valve automatically releases air if the air receiver pressure exceeds the preset maximum. Check the pressure relief valve before each use following the instructions found in Checking the Pressure Relief Valve.

Inspect the tank yearly for rust, pin holes, or other imperfections that could cause it to become unsafe.

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

WARNING: Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

Warning: Unplug the air compressor and release all air from the tank before servicing. Failure to depressurize tank before attempting to remove valve may cause serious personal injury.

Pull the ring on the pressure relief valve to release until pressure gauge reads less than 20 psi.

Open the drain valve allowing air to bleed from the tank.

NOTE: Condensate is a polluting material and should be disposed of in compliance with local regulations.

If drain valve is clogged, release all air pressure, remove and clean valve, then reinstall.

Sign off on the daily tank draining

Turn the air filter cover counterclockwise to remove

Remove air filter from air filter housing

Blow compressed air through the air filter for 10-15 seconds

Sign off on the air filter cleaning

DANGER: Do not attempt to tamper with the pressure relief valve. Anything loosened from this device could fly up and hit you. Failure to heed this warning could result in death or serious personal injury.

The pressure relief valve will automatically release air if the air receiver pressure exceeds the preset maximum.

The valve should be checked before each day of use by pulling the ring by hand.

Turn the air compressor on and allow the tank to fill. The compressor will shut off when the pressure reaches the preset maximum.

Pull the ring on the pressure relief valve to release air for three to five seconds.

Release the ring. Air must immediately stop escaping when the ring is released. Any continued loss of air after releasing the ring indicates a problem with the pressure relief valve. Discontinue use and seek service before continued use of the air compressor.

WARNING: If air leaks after the ring has been released, or if the valve is stuck and cannot be actuated by the ring, do not use the air compressor until the pressure relief valve has been replaced. Use of the air compressor in this condition could result in serious personal injury.

Sign off on the pressure relief valve check
