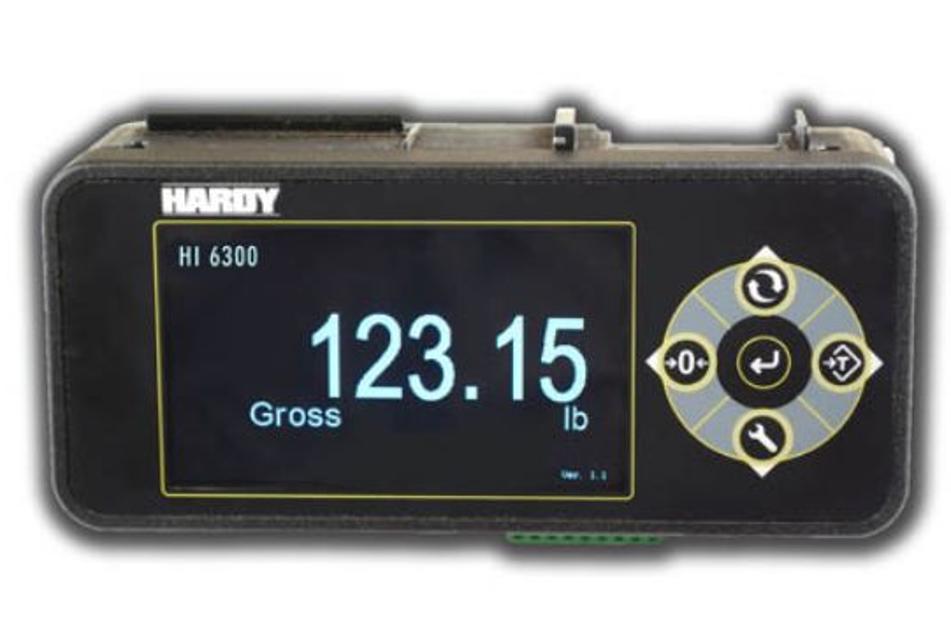

Hardy Process Solutions Weight Processor HI6300

Ensure all pre-calibration procedures are completed

Configure the HI 6300 series instrument (units, decimal point, NumAverages, etc.)

Ensure the scale system is clean and ready to receive product

Enter the Gravity Correction Factor based on your location

C2 and eCAL Calibration from the Web Page

Does the number of load cells displayed on the webpage correspond to the inputs on the instrument?

Enter the reference weight for your application

Power up the instrument to test connections

Check alignment of gasket with back panel screw holes

Back Panel and Gasket Alignment

Align back panel and attach gasket

Loosely insert screws into locations 1 through 5

Tighten screws 1 through 5 in numerical order

Load Cell/Point Input/Output Measurements

Measure the mVDC output from each load cell/point

Enter the mV/V rating of the load cell/point

Enter the weight capacity of the load cell/point in pounds

Is the mVDC output within the expected range based on the weight and mV/V rating?

Enter the initial weight reading on the input table in pounds

Enter the weight of the load placed on the scale or vessel in pounds

Does the weight reading increase correctly after placing the load?

Select Calibration from Configuration menu using down arrow and press Enter

Select Hard Cal from Calibration menu and press Enter

Select Ref Weight value using UP or DOWN button and press Enter

Wait for 12 seconds for reading to stabilize

Press ENTER to save Ref Weight value and return to calibration menu

Select Do Cal Lo using DOWN button and press Enter

Enter the weight applied to the scale or vessel (in pounds)

Is the applied load between 80% to 100% of the expected weight?

Record the initial weight reading on the display

Record the weight reading after applying the load

Did the weight reading increase in the proper direction?

Describe any issues with the weight reading, if applicable
