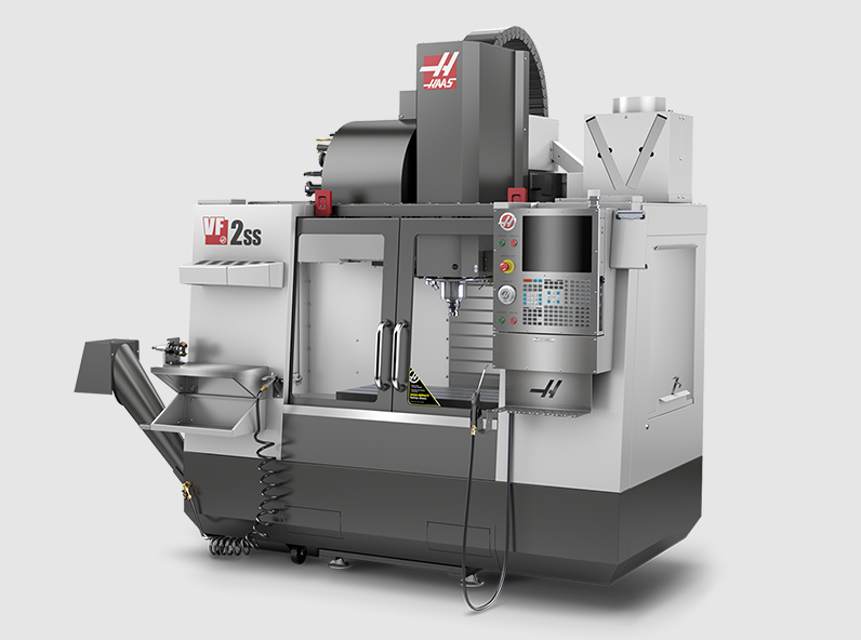

Haas Automation VF-2SS VF-2SS

Inspect way covers for proper operation

Amount of light oil used for lubrication

Place a dab of grease on the outside edge of the guide rails of the tool changer

EC-400 Clean the locating pads on the A-axis and the load station

Sign off on the monthly maintenance

Replace coolant and thoroughly clean the coolant tank

Check all hoses and lubrication lines for cracking

If necessary, add oil (Mobil SHC-630). The correct oil level is halfway on the sight glass.

Sign off on the 6 monthly maintenance

Check coolant level each eight-hour shift (especially during heavy TSC usage)

Check way lube lubrication tank level

Clean chips from way covers and bottom pan

Wipe spindle taper with a clean cloth rag and apply light oil

Check Through the Spindle Coolant (TSC) filters. Clean or replace element if needed.

Check for proper operation of auto drain on filter regulator.

On machines with the TSC option, clean the chip basket on the coolant tank.

Remove the tank cover and remove any sediment inside the tank.

Disconnect the coolant pump from the cabinet and power off the machine before working on the coolant tank.

Do this MONTHLY for machines without the TSC option.

Check air gauge/regulator for 85 psi.

Check the spindle air pressure regulator for 17 psi.

For 15K-spindle machines, check spindle air pressure regulator for 20 psi.

Drain the oil from the bottom of the gearbox

Remove inspection cover beneath spindle head

Add oil slowly from top until oil begins dripping from overflow tube at bottom of sump tank

For 50 taper spindles, add oil from the side of the transmission

Check oil filter and clean out residue at bottom of filter

Check SMTC oil level in sight glass
