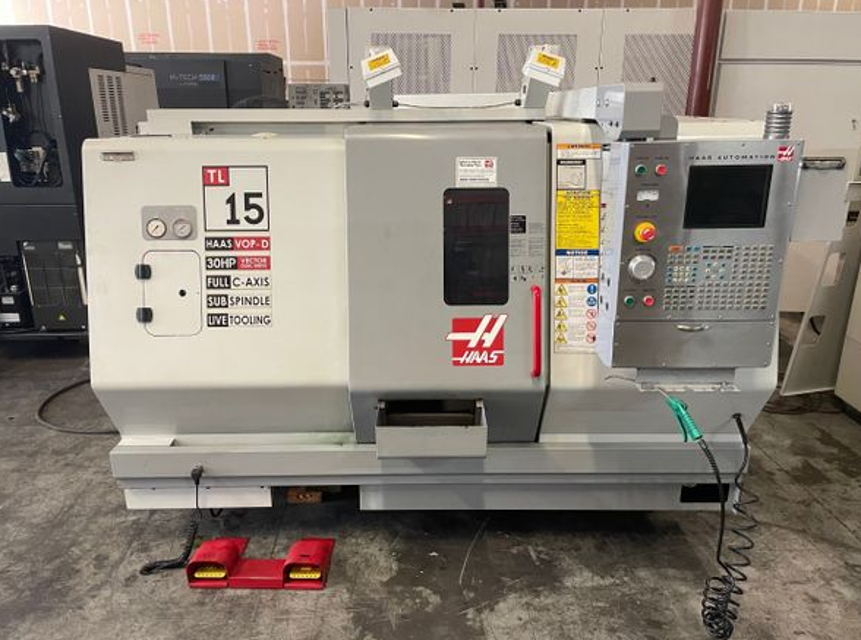

Haas Automation Lathe TL-15

Coolant replaced and coolant tank cleaned

Hydraulic unit oil filter replaced

All hoses and lubrication lines checked for cracking

Check for proper operation of auto drain on filter regulator.

Check air guage / regulator for 85 psi.

Clean exterior surfaces with mild cleaner. DO NOT use solvents.

Clean out small chip catch pan in coolant tank.

Mineral cutting oils will damage rubber based components throughout the machine.

When machining castings, sand from the casting process and the abrasive properties of cast aluminum and cast iron will shorten pump life unless a special filter is used in addition to the 100 mesh suction filter. Contact Haas Automation for recommendations.

Machining of ceramics and the like voids all warranty claims for wear and is done entirely at the customer's risk. Increased maintenance schedules are absolutely required with abrasive swarf. The coolant must be changed more often, and the tank thoroughly cleaned of sediment on the bottom. A larger coolant tank is recommended.

Shortened pump life, reduction of pressure and increased maintenance are normal and to be expected in abrasive environments and is not covered by warranty.

Small filter at end of lubricator disassembled and cleaned with air pressure OFF?

Oil filter cleaned and residue removed from the bottom?

Air filter on control box replaced? (Every 2 years)

Note: The filter box must be removed on the SL-20 lathes in order to replace the air filter.

Sign off on the lathe maintenance

Way lube lubrication tank level

Way covers and bottom pan cleaned from chips

Turret and housing cleaned from chips

Hydraulic unit oil level (DTE-25 ONLY)

Sign off on the daily lathe maintenance

Coolant replaced and coolant tank cleaned

Hydraulic unit oil filter replaced

All hoses and lubrication lines checked for cracking
