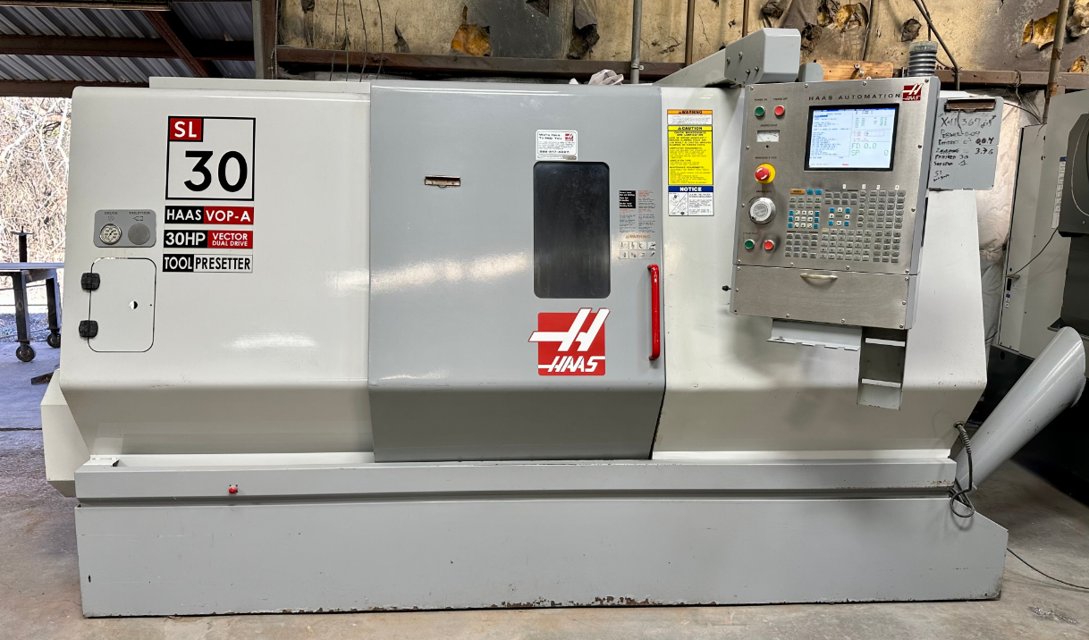

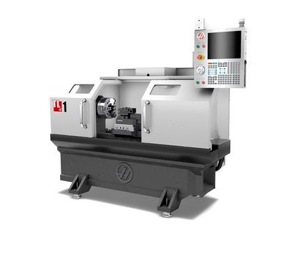

Haas Automation Lathe SL-30BB

Need answers fast?
Explore the manual using AI.

Haas Automation Lathe SL-30BB
Haas Automation Lathe SL-30BB

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Haas Automation Lathe SL-30BB

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Haas Automation Lathe SL-30BB

Haas Automation Lathe SL-30BB

Create an account to install this asset package.

Maintenance Plans for Haas Automation Lathe Model SL-30BB

Integrate maintenance plans directly into your work orders in MaintainX.

1 Daily Lathe Maintenance

Check mark

Check coolant level

Check mark

Check way lube lubrication tank level

Check mark

Clean chips from way covers and bottom pan

Check mark

Clean chips from turret and housing

Check mark

Check hydraulic unit oil level (DTE-25 ONLY). Capacity-8 gallons

Check mark

Sign off on the daily lathe maintenance

Run this procedureArrow right

Bulb Replacement

Check mark

TURN OFF power to the machine at the main breaker

Check mark

Remove the retainer and the light lens

Check mark

Remove the light bulb and replace

Check mark

Replace the light lens and retainer

Check mark

Restore power to the machine

Check mark

Sign off on the bulb replacement

Run this procedureArrow right

1 Weekly Lathe Maintenance

Check mark

Check for proper operation of auto drain on filter regulator.

Check mark

Check air guage / regulator for 85 psi.

Check mark

Clean exterior surfaces with mild cleaner. DO NOT use solvents.

Check mark

Clean out small chip catch pan in coolant tank.

Check mark

Mineral cutting oils will damage rubber based components throughout the machine.

Check mark

WARNING!

Check mark

When machining castings, sand from the casting process and the abrasive properties of cast aluminum and cast iron will shorten pump life unless a special filter is used in addition to the 100 mesh suction filter. Contact Haas Automation for recommendations.

Check mark

Machining of ceramics and the like voids all warranty claims for wear and is done entirely at the customer's risk. Increased maintenance schedules are absolutely required with abrasive swarf. The coolant must be changed more often, and the tank thoroughly cleaned of sediment on the bottom. A larger coolant tank is recommended.

Check mark

Shortened pump life, reduction of pressure and increased maintenance are normal and to be expected in abrasive environments and is not covered by warranty.

Run this procedureArrow right

1 Yearly Chuck Maintenance

Check mark

Ensure all moving part are thoroughly greased.

Check mark

Check for excessive wear on jaws.

Check mark

Check T-nuts for excessive wear.

Check mark

Check front retaining bolts for damage.

Check mark

Chucks should be broken in according to the manufactures' specifications.

Check mark

Caution: Lack of grease significantly reduces clamping force and can result in chatter, improper clamping, or thrown parts.

Check mark

Disassemble and inspect chuck once a year

Check mark

Refer to chuck manual for disassembly procedures

Check mark

Check for excessive wear

Run this procedureArrow right

1 Yearly Lathe Maintenance

Check mark

Gearbox oil replaced

Check mark

Small filter at end of lubricator disassembled and cleaned with air pressure OFF

Check mark

Oil filter cleaned and residue removed from the bottom of filter

Check mark

Air filter on control box replaced every (2) years

Check mark

Note: The filter box must be removed on the SL-20 lathes in order to replace the air filter.

Check mark

Sign off on the lathe maintenance

Run this procedureArrow right

Parts for Haas Automation Lathe SL-30BB

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Key Stub Shaft

22-2629

Yaskawa Sigma Motor 09

62-0014

Snap Lock Motor Mount Cover Plate

25-7042A

Gasket, Deflector Shield

26-7233A

Ballscrew Bumper

20-9058

Key Stub Shaft

22-2629

Yaskawa Sigma Motor 09

62-0014

Snap Lock Motor Mount Cover Plate

25-7042A

Gasket, Deflector Shield

26-7233A

Ballscrew Bumper

20-9058

Key Stub Shaft

22-2629

Yaskawa Sigma Motor 09

62-0014

Snap Lock Motor Mount Cover Plate

25-7042A

Gasket, Deflector Shield

26-7233A

Ballscrew Bumper

20-9058
