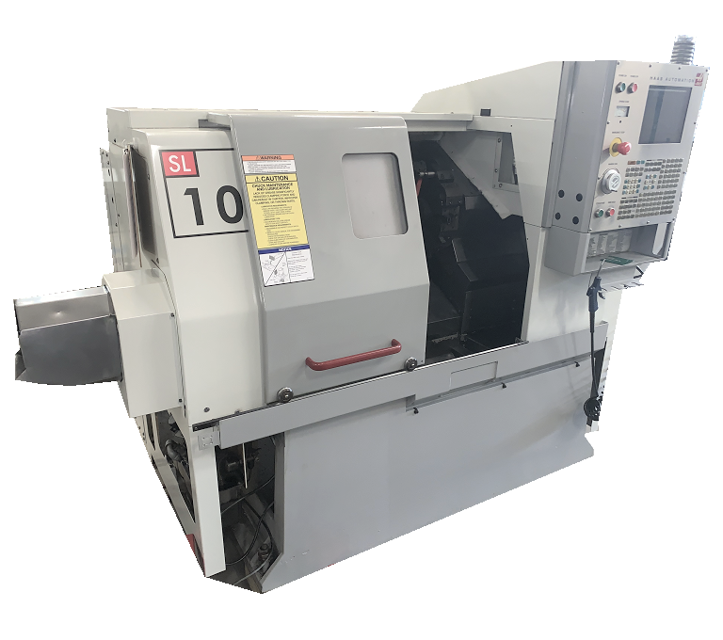

Haas Automation Lathe SL-10

Coolant replaced and coolant tank cleaned

Hydraulic unit oil filter replaced

All hoses and lubrication lines checked for cracking

TURN OFF power to the machine at the main breaker

Remove the retainer and the light lens

Remove the light bulb and replace

Replace the light lens and retainer

Sign off on the bulb replacement

Ensure all moving part are thoroughly greased.

Check for excessive wear on jaws.

Check T-nuts for excessive wear.

Check front retaining bolts for damage.

Chucks should be broken in according to the manufactures' specifications.

Caution: Lack of grease significantly reduces clamping force and can result in chatter, improper clamping, or thrown parts.

Disassemble and inspect chuck once a year

Refer to chuck manual for disassembly procedures

Sign off on the filter cleaning

Check way lube lubrication tank level

Clean chips from way covers and bottom pan

Clean chips from turret and housing

Check hydraulic unit oil level (DTE-25 ONLY). Capacity-8 gallons
