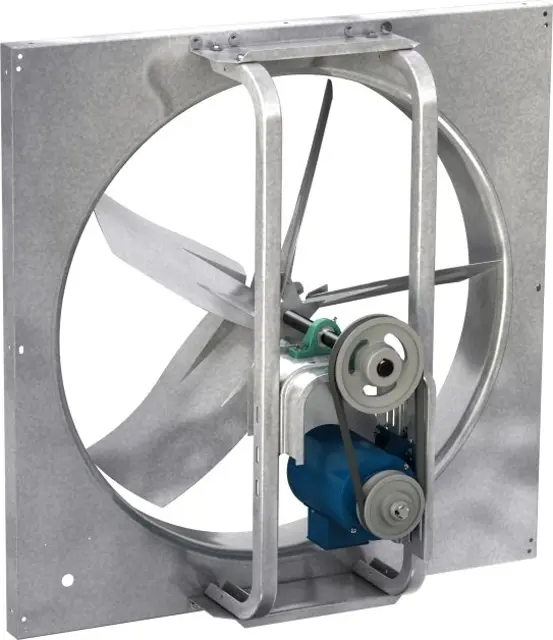

Greenheck Sidewall Propeller Fan SBE-1
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Greenheck Sidewall Propeller Fan SBE-1
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Greenheck Sidewall Propeller Fan SBE-1
Create an account to install this asset package.
Maintenance Plans for Greenheck Sidewall Propeller Fan Model SBE-1
Integrate maintenance plans directly into your work orders in MaintainX.
1 Monthly Fan Inspection
Inspection and Maintenance Record
Record inspection and maintenance performed
Moisture and Dirt Inspection
Check for moisture or dirt accumulations on parts
Describe the source of moisture or dirt if found
Wheel Rotation
Rotate the wheel by hand
Paint Condition
Check for paint deterioration
6 Monthly Bearing Lubrication
Safety Precautions
Disconnect power source
Lock and tag power source
Bearing Inspection
Check for tightness
Lubrication Conditions
Are temperatures between 32ºF (0ºC) and 200ºF (93ºC)?
Are there unusual environmental conditions such as moisture or contaminants?
Lubrication Process
Initial 24 Hours Belt Tension Check
Safety Precautions
Disconnect power source
Initial Belt Tension Check
Measure belt span in inches
Calculate proper belt deflection
Measure actual belt deflection
Is the belt tension correct?
Belt Tension Adjustment
Loosen fasteners on motor plate
Fan Check
Fasteners and Setscrews Inspection
Check all fasteners and setscrews for tightness
Propeller Inspection
Does the propeller rotate freely without rubbing on the fan panel venturi?
Is the propeller rotation direction correct according to the rotation decal?
Operational Check
Momentarily turn the unit on to check propeller rotation direction
Belt Tension Check
Safety Precautions
Disconnect power source
Initial Belt Tensioning
Measure belt span in inches
Calculate proper belt deflection
Measure belt deflection using thumb pressure
Belt Tension Adjustment
Loosen fasteners on motor plate
Slide motor plate to adjust tension
