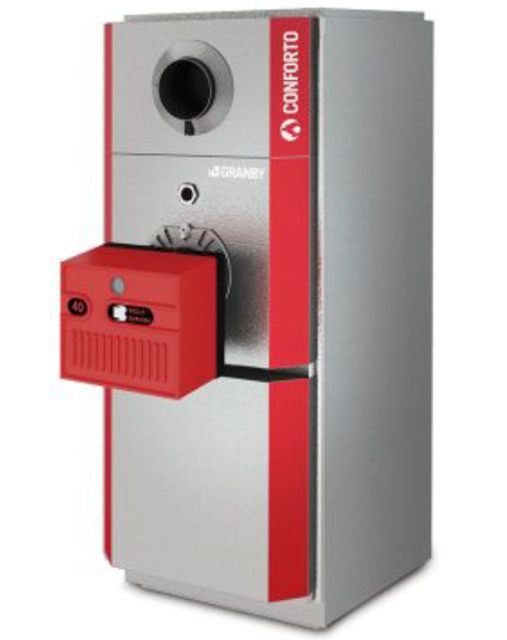

Granby Industries Oil Fired Hi-Boy Furnace KHM-200
Create an account to install this asset package.
Maintenance Plans for Granby Industries Oil Fired Hi-Boy Furnace Model KHM-200
Integrate maintenance plans directly into your work orders in MaintainX.
Blower Removal
Preparation
Shut off oil to furnace
Shut off power to furnace
Blower Removal Process
Remove the two screws securing the blower door (Figure 1)
Open blower compartment (Figure 2)
Disconnect the wiring to the blower motor
Remove the screw securing the blower side to the separating panel (Figure 3)
Slide the blower toward you and remove it from the furnace (Figure 4)
Heat Exchanger Cleaning
Initial Disassembly
Remove the breech plate
Remove the burner
Cleaning Process
Clean the round tubes with a 2’’ diameter brush if needed
Clean the transitions tubes if needed
Clean the combustion chamber if needed
Parts for Granby Industries Oil Fired Hi-Boy Furnace KHM-200
Access the parts list for your equipment in MaintainX.
Left Panel Assembly
CAB-A0-0027-00
Right Panel Assembly
CAB-A0-0028-00
Rear Panel Assembly
CAB-A0-0026-00
Blower Panel Assembly
CAB-A0-0024-00
Front Panel Assembly
CAB-A0-0029-00
Left Panel Assembly
CAB-A0-0027-00
Right Panel Assembly
CAB-A0-0028-00
Rear Panel Assembly
CAB-A0-0026-00
Blower Panel Assembly
CAB-A0-0024-00
Front Panel Assembly
CAB-A0-0029-00
Left Panel Assembly
CAB-A0-0027-00
Right Panel Assembly
CAB-A0-0028-00
Rear Panel Assembly
CAB-A0-0026-00
Blower Panel Assembly
CAB-A0-0024-00
Front Panel Assembly
CAB-A0-0029-00
