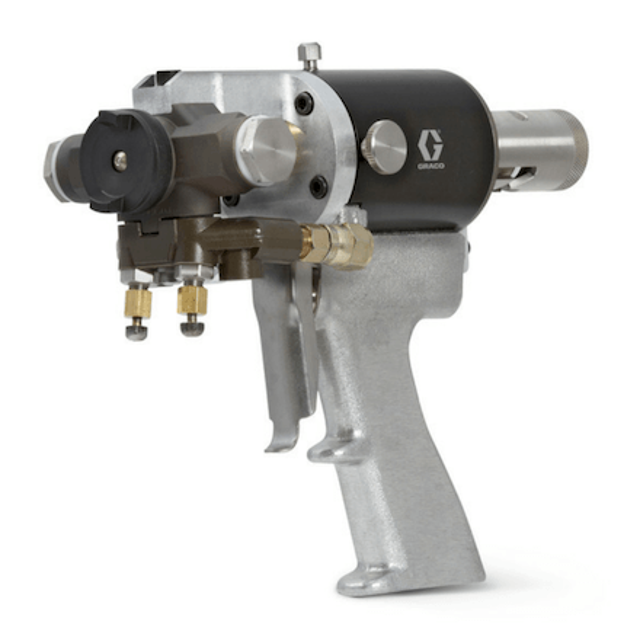

Graco Spray Gun 295540
Create an account to install this asset package.
Maintenance Plans for Graco Spray Gun Model 295540
Integrate maintenance plans directly into your work orders in MaintainX.
1 Daily Spray Gun Maintenance
Select the service kit used
Refer to the respective manuals for instructions on how to use the service kits.
Upload a photo of the spray gun after flushing
Was the spray gun successfully flushed without disassembly?
Sign off on the daily spray gun maintenance
Spray Gun Cleaning
Warning: Chemicals used while spraying may cause the gun surface to become hot to touch. Thoroughly flush the gun block B with gun cleaner before removing the valving rod N or mixing components from the gun block. Also allow chemicals in the spray gun to cool before cleaning.
This procedure makes use of the 1-Quart or 3-Gallon Gun Service Kit.
Perform the Pressure Relief Procedure page 17.
Set the safety lock H to CLOSED SERVICE.
Close both manual valves C.
Remove the gun from the coupling block J. Follow Remove Coupling Block page 16.
Attach the service block of the gun service kit to the spray gun and then tighten using a 5/16 in. nut driver.
Pressurize Service Kit container up to 100 psi. DO NOT EXCEED 100 psi 0.7 MPa 7 bar.
Open one manual valve C on service block.
Parts for Graco Spray Gun 295540
Access the parts list for your equipment in MaintainX.
Mix Module
296859
Tip
296853
Tool KIt
296835
1-Quart Gun Service Kit
296980
3-Gallon Gun Service Kit
296981
Mix Module
296859
Tip
296853
Tool KIt
296835
1-Quart Gun Service Kit
296980
3-Gallon Gun Service Kit
296981
