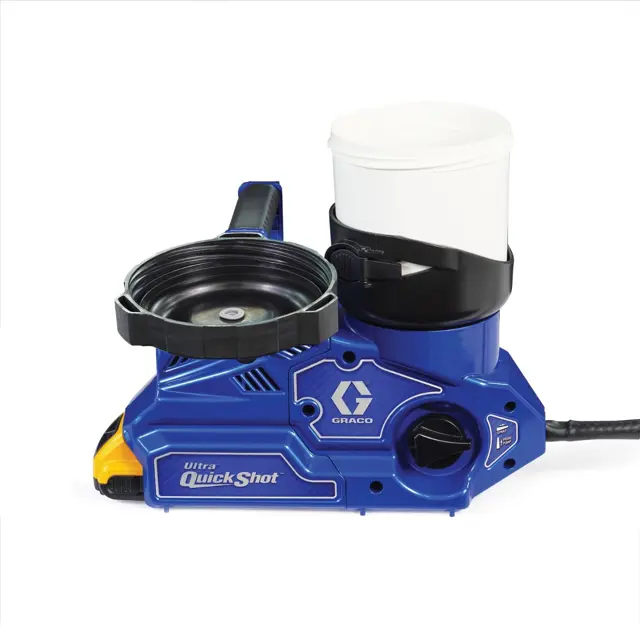

Graco QuickShot 826308

Create an account to install this asset package.

Maintenance Plans for Graco QuickShot Model 826308

Integrate maintenance plans directly into your work orders in MaintainX.

Sprayer Cleaning

NOTICE: Failure to properly clean sprayer after each use will result in hardened materials damage to the sprayer and the warranty will no longer be valid. Do not store solvents other than mineral spirits in sprayer. Always flush with Graco Pump Armor prior to storage.

To avoid serious injury from fire and explosion when using oil-based or flammable materials, clean in a well-ventilated area. Keep a good supply of fresh air moving through the area. When flushing with solvents always ground the sprayer and waste container.

To help prevent serious injury from pressurized fluid such as skin injection or splashing fluid do not immerse gun in solvent. The trigger can get stuck in the ON position.

Engage Trigger Lock.

Turn Prime Knob up to PRIME position to relieve system pressure.

Remove sprayer from the Belt by pressing the Holster Release Clip and pulling up on the sprayer.

Remove Cup Lid and pour extra paint back into paint can.

Remove Pump Filter and clean debris from both sides of the filter screen.

Reinstall Pump Filter in the bottom of the Cup.

Run this procedure
