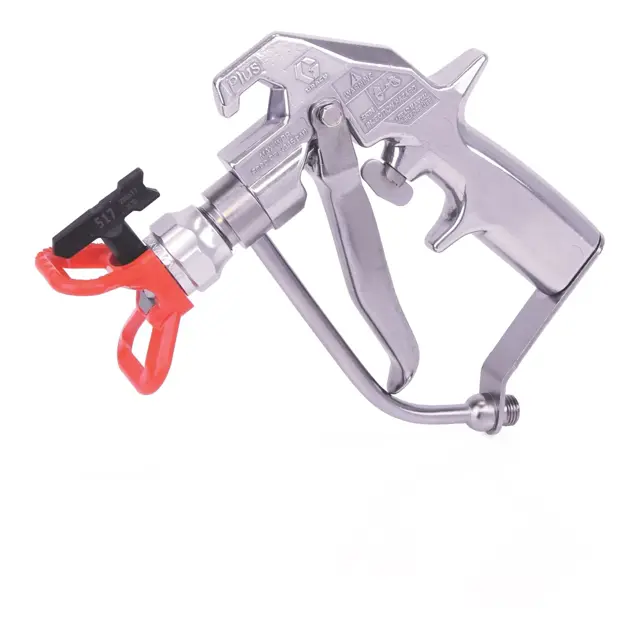

Graco Airless Spray Gun Flex Plus 235458

Create an account to install this asset package.

Maintenance Plans for Graco Airless Spray Gun Model Flex Plus 235458

Integrate maintenance plans directly into your work orders in MaintainX.

Tip and Guard Replacement

Disassembly

1. Follow the Pressure Relief Procedure on page 8.

2. Unscrew the tip guard.

3. Use the SwitchTip to remove OneSeal from the tip guard.

Assembly

Install the tip and guard See Setup on page 9. ;

Run this procedure

Needle Replacement

Warning: Follow the Pressure Relief Procedure before cleaning, checking or servicing to prevent serious injury from pressurized fluid.

Pressure Relief Procedure followed

Trigger lock engaged

Tip and guard removed and gun disconnected from the fluid hose

Gun flushed with cleaning fluid

Diffuser/seat unscrewed and removed

Pivot pin unscrewed from the screw and trigger removed

Needle tapped out using a punch

Internal passages from the gun cleaned

Run this procedure
