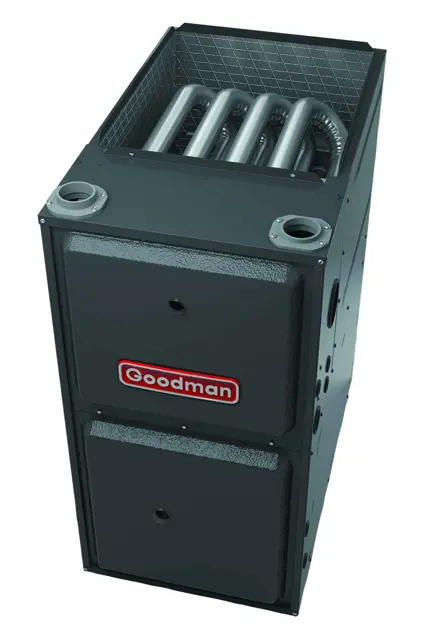

Goodman Gas Furnace GCVC960603BN

Ensure all other gas appliances are turned off

Ensure the heating cycle has been in operation for at least fifteen minutes

Record the time (in seconds) for one complete revolution of the cubic foot dial on the gas meter

Enter the number of cubic feet of gas consumed per hour (from gas rate chart)

Enter the calorific value of the gas (BTU per cubic foot)

Calculate and enter the BTU input to the furnace

Connect a manometer to the outlet tap at the gas valve before adjusting the pressure regulator

Record the initial manifold pressure in inches of water column

Is the manifold pressure within the acceptable range?

Adjust the pressure regulator by turning clockwise to increase or counterclockwise to decrease pressure

Record the final manifold pressure in inches of water column

Propane Gas Specific Instructions

Disconnect all power before servicing or installing the unit

Check the following furnace components for proper working order

Ensure ignitor is handled with care, avoiding contact with bare fingers and rough handling

Were all necessary repairs or services completed?

Filter Maintenance Responsibility

Media Air Filter or Electronic Air Cleaner Removal

Upright Counterflow Filter Removal

Turn off electrical power to furnace

Remove access door in ductwork above furnace

Ensure the air cleaner is installed in the correct position (not with the access door facing down).

Verify the air cleaner is located in the return air duct next to the blower compartment.

Electronic Air Cleaner Inspection

Check accessibility for periodic inspection and cleaning of pre-filters and electronic cells.

Inspect and clean the pre-filters.

Inspect and clean the electronic cells.

Check accessibility for periodic inspection and replacement of the Media Air Cleaner filter cartridge.
