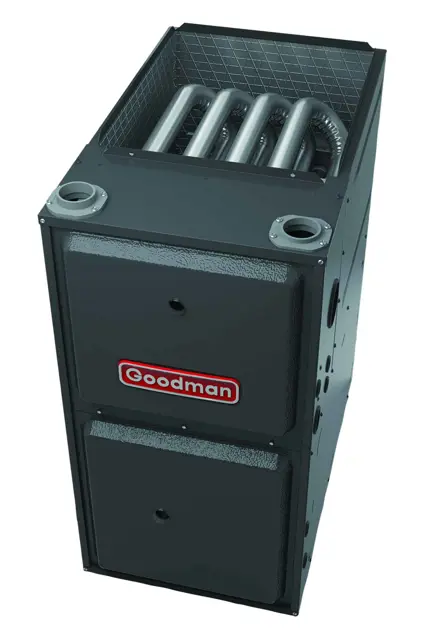

Goodman Gas Furnace AMVC960603BN

Ensure the air cleaner is installed in the correct position (not with the access door facing down).

Verify the air cleaner is located in the return air duct next to the blower compartment.

Electronic Air Cleaner Inspection

Inspect the accessibility of the electronic air cleaner for periodic inspection and cleaning.

Check the pre-filters and electronic cells for cleanliness.

Inspect the accessibility of the media air cleaner for periodic inspection and replacement of the filter cartridge.

Verify the availability of the following filter cartridges

Ensure all other gas appliances are turned off

Ensure the heating cycle has been in operation for at least fifteen minutes

Record the time (in seconds) for one complete revolution of the cubic foot dial on the gas meter

Enter the number of cubic feet of gas consumed per hour

Enter the calorific value of the gas (BTU per cubic foot)

Calculate the BTU input by multiplying the cubic feet of gas consumed per hour by the calorific value

Inspect the flue pipe system for blockage and/or leakage.

Inspect the outside termination and connections of the flue pipe system.

Inspect the combustion air intake pipe system for blockage and/or leakage.

Inspect the outside termination and connection of the combustion air intake pipe system.

Inspect the heat exchanger for corrosion and/or buildup within the passageways.

Connect a manometer to the outlet tap at the gas valve before adjusting the pressure regulator.

Measure the current manifold pressure for natural gas.

Is the manifold pressure within 3.5 inches water column for natural gas?

Measure the current manifold pressure for propane gas.

Is the manifold pressure within 10 inches water column for propane gas?

Turn the pressure regulator clockwise to increase pressure and input.

Turn the pressure regulator counterclockwise to decrease pressure and input.

Disconnect all power before servicing, removing the filter or performing any other maintenance.

Check for multiple power sources

Clean the permanent filter if applicable.

Replace the disposable filter if applicable.
