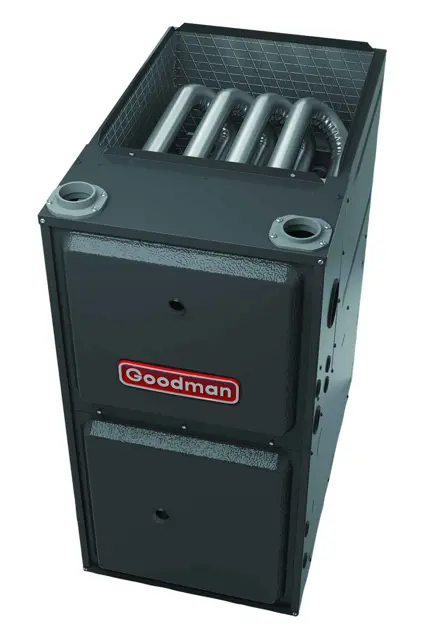

Goodman Gas Furnace AMVC961005CN

Connect a manometer to the outlet tap at the gas valve before adjusting the pressure regulator

Record the initial manifold pressure in inches of water column

Is the manifold pressure within the acceptable range for natural gas (3.5 inches water column)?

Is the manifold pressure within the acceptable range for propane gas (10 inches water column)?

Adjust the pressure regulator by turning clockwise to increase pressure and counterclockwise to decrease pressure

Record the final manifold pressure after adjustment

Propane Gas Specific Instructions

Ensure the air cleaner is installed in the correct position

Is the air cleaner readily accessible for inspection?

Electronic Air Cleaner Inspection

Inspect and clean the following components

Inspect and replace the Media Air Cleaner filter cartridge if necessary

Check availability of Carbon Filters

Disconnect all power before servicing, removing the filter or performing any other maintenance.

Check for multiple power sources

Clean the permanent filter if applicable.

Replace the disposable filter if applicable.

Ensure all other gas appliances are turned off

Wait for the heating cycle to operate for at least fifteen minutes

Clock the gas meter to determine the time for one complete revolution of the cubic foot dial

Enter the time in seconds for one complete revolution

Enter the number of cubic feet of gas consumed per hour

Enter the calorific value of the gas (BTU per cubic foot)

Disconnect all power before servicing or installing the unit

Check the following furnace components for proper working order

Is the ignitor being handled by a qualified servicer?

Describe any handling precautions taken for the ignitor

Were any repairs or services necessary?

Describe any repairs or services performed
