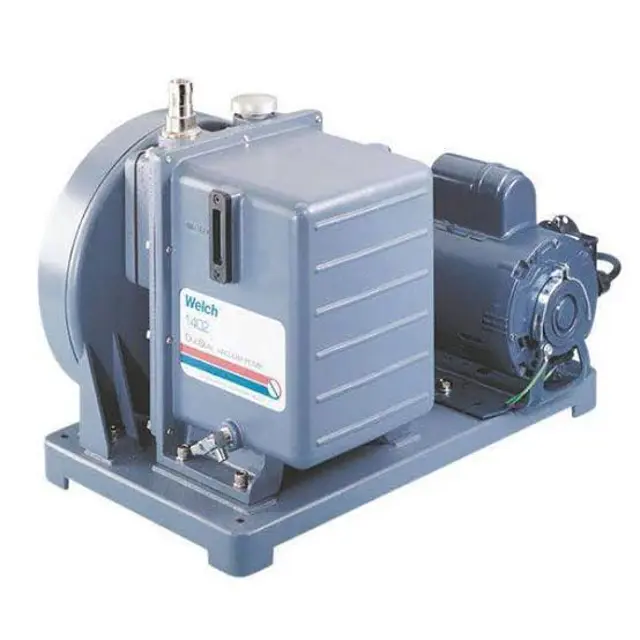

Gardner Denver Vacuum Pump 1402
Create an account to install this asset package.
Maintenance Plans for Gardner Denver Vacuum Pump Model 1402
Integrate maintenance plans directly into your work orders in MaintainX.
Trap Maintenance
Refrigerant Level Maintenance
Ensure refrigerant is maintained at a high level in the flask
Check for obstructions in the refrigerant add tube
Trap Saturation Check
Monitor pressure in the vacuum system for increase
Is the pressure indicating trap saturation?
Trap Cleaning Procedure
Disconnect the trap from the system
Allow the trap to warm up
Shaft Seal Replacement
Preparation
Drain the oil from the pump
Remove the pump pulley and key
Old Seal Removal
Remove screws securing the old seal
Pry the old seal loose with a screwdriver or similar wedge
Discard the old seal and its gasket
Inspection and Cleaning
Inspect all surfaces for damage
3 Monthly Oil Change
Oil Level Check
Check the oil level
Is the oil level above the fill mark?
Initial Pump Run
Do you suspect contaminants have damaged the mechanism?
Run the pump for 15 minutes to warm up the oil
Oil Draining and Inspection
Turn off motor for the vacuum pump
Drain the oil into a clear plastic container
1 Daily Oil Check
Oil Condition Examination
Check for oil discoloration
Check if oil level is rising
Oil Change Decision
Was there any change in oil color or level?
If changes are observed, change the oil
Parts for Gardner Denver Vacuum Pump 1402
Access the parts list for your equipment in MaintainX.
Shaft Seal: Lip Seal
1401D -01
Shaft Seal: Mechanical Seal
1401D
Dust Cap
41-0612
Air Filter Screen
41-0660
Intake Chamber Cover Gasket
41-0234
Shaft Seal: Lip Seal
1401D -01
Shaft Seal: Mechanical Seal
1401D
Dust Cap
41-0612
Air Filter Screen
41-0660
Intake Chamber Cover Gasket
41-0234
Shaft Seal: Lip Seal
1401D -01
Shaft Seal: Mechanical Seal
1401D
Dust Cap
41-0612
Air Filter Screen
41-0660
Intake Chamber Cover Gasket
41-0234
