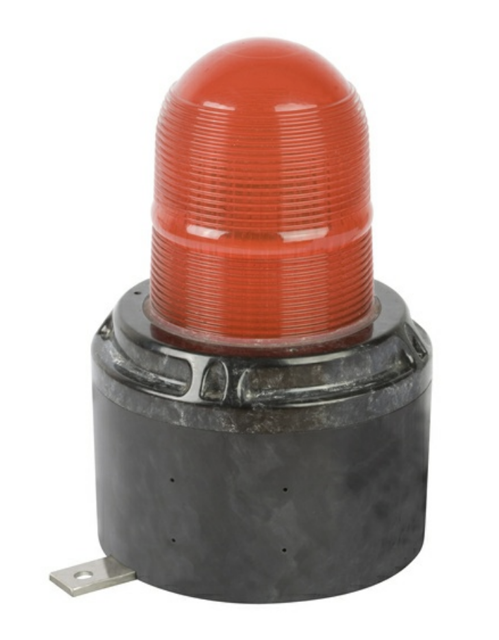

Eaton LED Strobe Beacon LD15-W-DC-R-N-P-N-N

Select the grease used for re-application

Ensure the cover seal is correctly seated in its groove

Measure the gap between the faces of the cover and enclosure (in inches)

Beacon Functionality Verification

Verify the beacon provides an intermittent or permanent spherical visual warning light upon demand

Confirm the application type for testing frequency

Ensure the power to the device is isolated before removing the cover for maintenance

Confirm no explosive atmosphere is present before opening the device

Accessing the Electronic Sub-Assembly

Refer to the access to terminals and DIL switch procedure (page 5) for details of gaining access to the electronic sub-assembly

Replacement of Electronic Sub-Assembly

Replace the electronic sub-assembly if necessary

Check that all parts of the unit are in place after replacement

Use a damp cloth to clean the exterior of the unit

Avoid using dry cloths or abrasive materials

Check for any signs of electrostatic charge build-up

Are there any signs of plant damage or accident?

Check resistance of GRP against the following

Is the unit free from visible damage?

Is there any sign of wear or corrosion?

Document any findings of abnormal conditions
