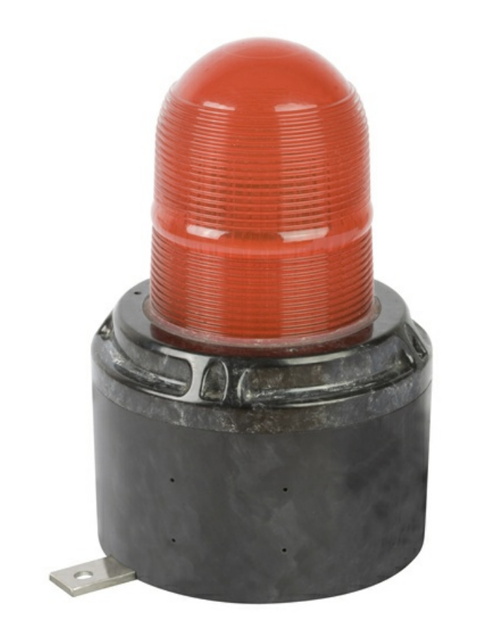

Eaton LED Strobe Beacon LD15-UL-AC-R-N-P-N-N

Use a damp cloth to clean the exterior of the unit

Avoid using dry cloths or abrasive materials

Inspect the unit for any signs of electrostatic charge build-up

Is the unit free from electrostatic charge build-up?

Applicable to all applications other than Fire Alarm systems

Verify the beacon provides an intermittent or permanent spherical visual warning light upon demand

Testing Frequency Recommendation

Test the product at least once a year

For Fire Alarm system applications, test at least once a week

Ensure the power to the device is isolated before removing the cover for maintenance

Is there an explosive atmosphere present?

Accessing the Electronic Sub-Assembly

Refer to the access to terminals and DIL switch procedure (page 5) for details of gaining access to the electronic sub-assembly

Replacement of Electronic Sub-Assembly

Replace the electronic sub-assembly if necessary

Check that all parts are in place after replacement

Are there any visible signs of damage to the beacon?

Check for unusual environmental conditions

Is the GRP material intact and free from corrosion?

Is the GRP material showing any signs of chemical attack?

Does the beacon require any maintenance?

Describe any issues found during the inspection

Ensure installation has been completed and the device is fully sealed and secured

Check that the cover seal is correctly seated in its groove

Measure the gap between the faces of the cover and enclosure

Post-Installation Documentation

Ensure a copy of the manual is made available to all operating personnel
