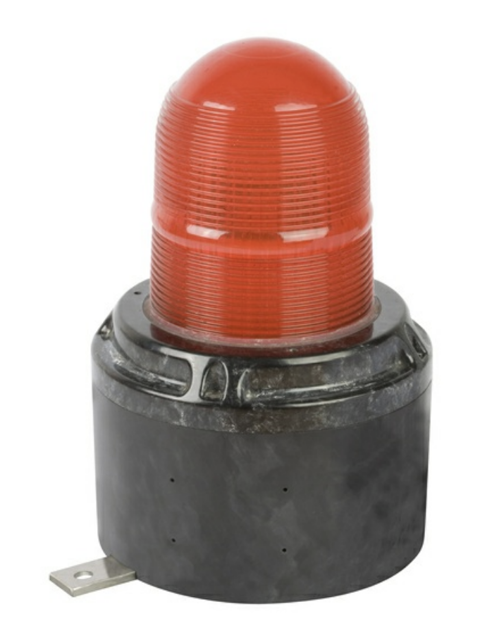

Eaton LED Strobe Beacon LD15-UL-DC-Y-C-B-T-Y

Ensure the power to the device is isolated before removing the cover for maintenance

Is there an explosive atmosphere present?

Accessing the Electronic Sub-Assembly

Refer to the access to terminals and DIL switch procedure (page 5) for details of gaining access to the electronic sub-assembly

Replacement of Electronic Sub-Assembly

Replace the electronic sub-assembly with a new unit

Check that all parts are in place after replacement

Does the unit require cleaning?

Clean the exterior with a damp cloth only

Select the grease used for re-application

Ensure the cover seal is correctly seated in its groove

Measure the gap between the faces of the cover and enclosure

Ensure installation has been completed

Verify the device is fully sealed and secured

Measure the gap between the faces of the cover and enclosure

Is the cover seal correctly seated in its groove?

Post-Installation Documentation

Ensure a copy of the manual is made available to all operating personnel

Applicable to all applications other than Fire Alarm systems

Test the product at least once a year

Does the beacon provide an intermittent or permanent spherical visual warning light upon demand?

Test the beacon at least once a week
