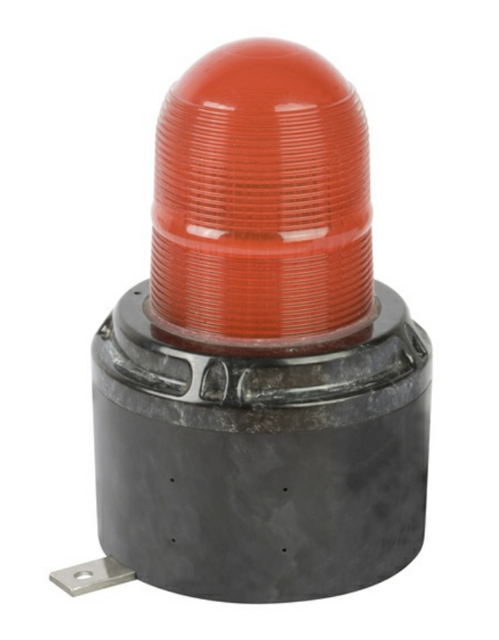

Eaton LED Strobe Beacon LD15-UL-DC-C-W-D-N-N

Ensure the power to the device is isolated before removing the cover for maintenance

Is there an explosive atmosphere present?

Accessing the Electronic Sub-Assembly

Refer to the access to terminals and DIL switch procedure (page 5) for details of gaining access to the electronic sub-assembly

Replacement of Electronic Sub-Assembly

Replace the electronic sub-assembly if necessary

Check that all parts are in place after replacement

Ensure installation has been completed and the device is fully sealed and secured

Measure the gap between the faces of the cover and enclosure

Is the cover seal correctly seated in its groove with a maximum gap of 0.0075" (0.2mm)?

Post-Installation Documentation

Ensure a copy of the manual is made available to all operating personnel

Ensure the cleaning cloth is damp, not dry

Clean the exterior of the beacon with the damp cloth

Was the cleaning performed with a damp cloth only?

Beacon Functionality Verification

Verify the beacon provides an intermittent or permanent spherical visual warning light upon demand

Confirm the application type of the beacon

Is the beacon tested at least once a week for Fire Alarm systems?

Is the beacon tested at least once a year for Non-Fire Alarm applications?

Applicable to all applications other than Fire Alarm systems

Verify the beacon provides an intermittent or permanent spherical visual warning light upon demand

Testing Frequency Recommendation

Test the product at least once a year

For Fire Alarm system applications, test at least once a week
