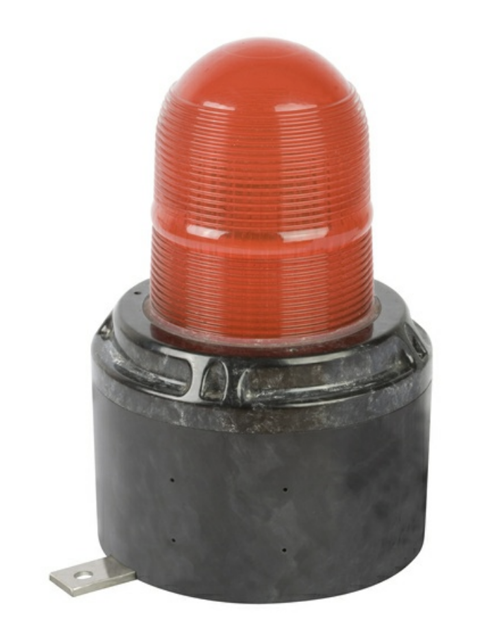

Eaton LED Strobe Beacon LD15-ULC-AC-C-C-D-N-N

Are there any signs of plant damage or accident?

Inspect the beacon for any visible damage or wear.

Is the GRP material showing any signs of chemical attack?

Check resistance against the following substances

Does the beacon require maintenance under current conditions?

Describe any unusual environmental conditions observed.

Ensure the test is applicable to non-Fire Alarm systems

Confirm the beacon is scheduled for a yearly test

Does the beacon provide an intermittent or permanent spherical visual warning light upon demand?

Schedule weekly tests for Fire Alarm system applications separately

Ensure the power to the device is isolated before removing the cover for maintenance

Is the area free from explosive atmosphere?

Accessing the Electronic Sub-Assembly

Refer to the access to terminals and DIL switch procedure (page 5) for details of gaining access to the electronic sub-assembly

Replacement of Electronic Sub-Assembly

Replace the electronic sub-assembly if necessary

Check that all parts are in place after replacement

Select the grease used for re-application

Ensure the cover seal is correctly seated in its groove

Measure the gap between the faces of the cover and enclosure (in inches)

Is the gap within the maximum limit of 0.0075 inches?

Beacon Functionality Verification

Verify the beacon provides an intermittent or permanent spherical visual warning light upon demand

Select the application type for the beacon

Confirm the beacon is tested weekly for Fire Alarm systems

Confirm the beacon is tested annually for Non-Fire Alarm applications
