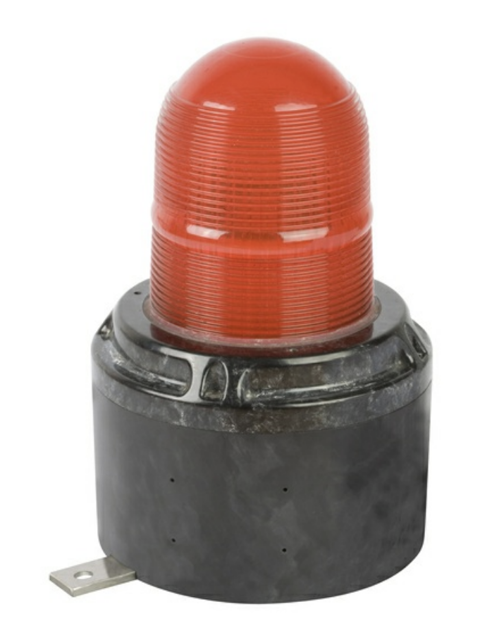

Eaton LED Strobe Beacon LD15-ULC-DC-G-N-B-N-G

Beacon Functionality Verification

Verify the beacon provides an intermittent or permanent spherical visual warning light upon demand

Confirm the application type for testing frequency

Select the grease used for re-application

Is the cover seal correctly seated in its groove?

Measure the gap between the faces of the cover and enclosure (in inches)

Is the gap within the maximum limit of 0.0075 inches (0.2mm)?

Ensure the power to the device is isolated before removing the cover for maintenance

Confirm no explosive atmosphere is present before opening the device

Accessing the Electronic Sub-Assembly

Refer to the access to terminals and DIL switch procedure (page 5) for details of gaining access to the electronic sub-assembly

Replacement of Electronic Sub-Assembly

Replace the electronic sub-assembly if necessary

Contact MEDC for electronic sub-assembly replacement details if needed

Use a damp cloth to clean the exterior of the unit

Avoid using dry cloths or abrasive materials

Check for any signs of electrostatic charge build-up

Ensure the test is applicable to non-Fire Alarm systems

Confirm the beacon is scheduled for a yearly test

Does the beacon provide an intermittent or permanent spherical visual warning light upon demand?
