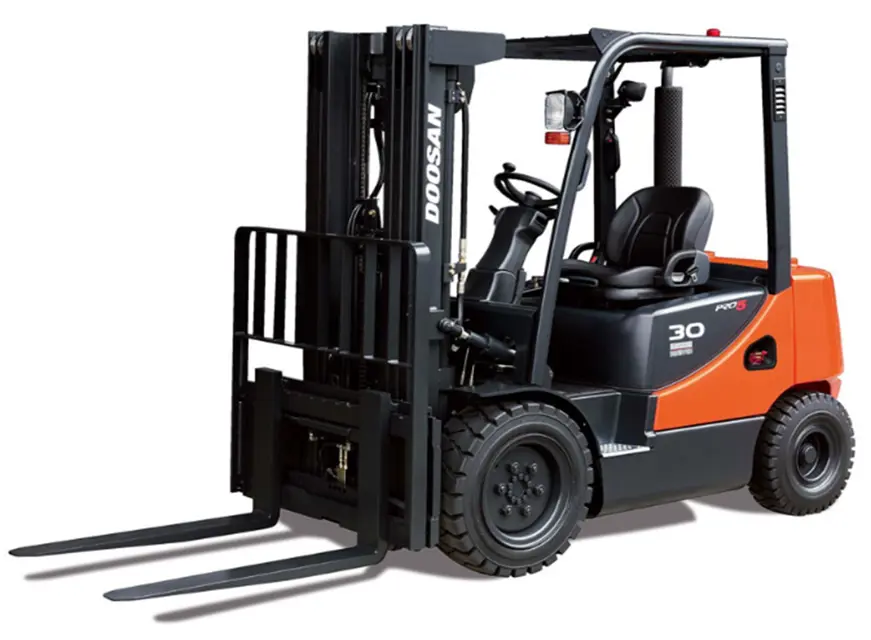

Doosan Lift Truck D30S-5

Hydraulic Return Filter – Change

Loosen the bolts of the hydraulic tank top plate assembly

Remove the return filter from tank top plate assembly

Install the tank top plate assembly and fasten the bolts

Start the engine and operate the hydraulic controls, and the steering system, through a few cycles to fill the lines. Look for oil leaks

Stop the engine and check the oil level. With all cylinders retracted, maintain the oil level to the FULL mark on the dip stick/filter cap assembly

Sign off on the service completion
