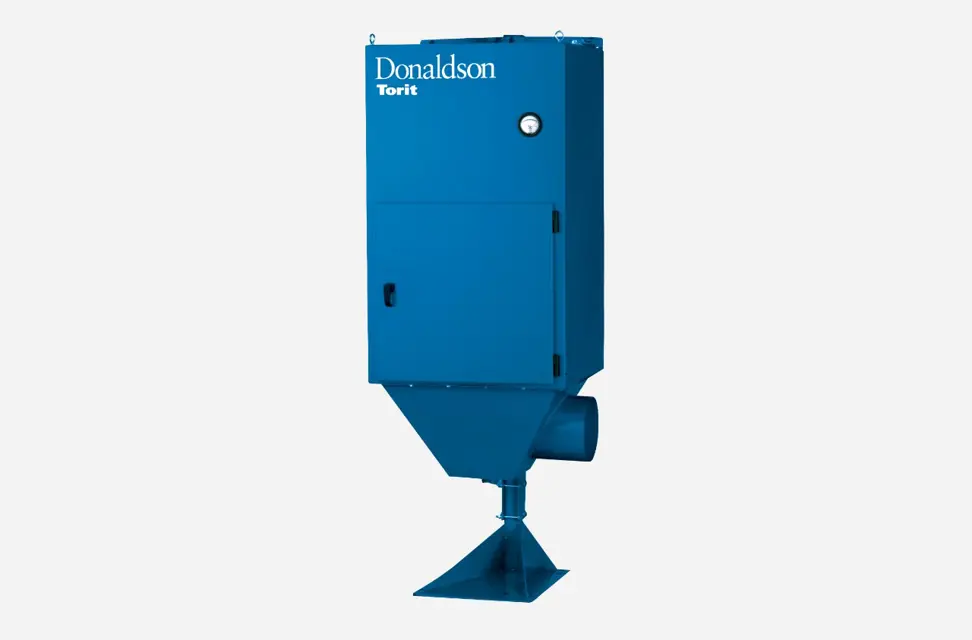

The Donaldson Mist Collector WSO 25-6 is a high-efficiency industrial air filtration system designed to capture and remove airborne contaminants. This model ensures optimal performance and air quality in manufacturing environments, making it essential for maintaining a safe and compliant workspace.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Donaldson Mist Collector WSO 25-6

Create an account to install this asset package.

Maintenance Plans for Donaldson Mist Collector Model WSO 25-6

Integrate maintenance plans directly into your work orders in MaintainX.

Mist Collector P-Trap Maintenance

P-Trap Service

1. Place a suitable container under the P-Trap, turn the collector off and remove the pipe plug.

2. Allow fluid and particulate to drain.

3. Use thread sealant and replace pipe plug.

4. Refill the P-Trap with suitable fluid before restarting the collector.

P-Trap with Y-Strainer, Screen Cleaning and Removal

1. Place a suitable container under the screen clean-out valve, turn the collector off, close the P-Trap valve, then open the screen clean-out valve.

2. Allow fluid and particulate to drain.

3. With the clean-out valve open, slowly open the P-Trap valve. This allows fluid still trapped in the hopper to drain.

Run this procedure

Mist Collector Check

Warning: Wear eye, respiratory, head, and other protection equipment suitable for the type of mist when performing any service activities.

Lock out all energy sources prior to performing any service or maintenance on the equipment.

Electrical service or maintenance work must be performed by a qualified electrician and comply with all applicable national and local codes.

Physical condition of the collector

Pressure drop across filters

Monitor exhaust

Monitor hopper drainage

Check that the P-Trap is full

If equipped with a HEPA or 95 percent DOP, monitor pressure drop across the after filter

Run this procedure

Mist Collector Filter Maintenance

Filter Replacement

Most mists present safety and health hazards that require precautions. Wear eye, respiratory, head, and other protection equipment suitable for the type of mist.

Use proper safety and protective equipment when removing contaminants and filters.

Dirty filters may be heavier than they appear. Use appropriate lifting methods to avoid personal injury and or property damage.

Turn power off and lock out all power before performing service or maintenance work.

Do not operate with missing or damaged filters.

First Stage Filter

Remove the first stage filter through the lower access door. Clean the first-stage screen by tapping it gently over an appropriate waste container. If further cleaning is required, wash in an appropriate wash tank. To clean the first-stage filter, soak in an appropriate wash tank, rinse, dry, and re-install.

High temperature, steam-cleaning methods should not be used with the polypropylene filters due to the temperature limitations.
