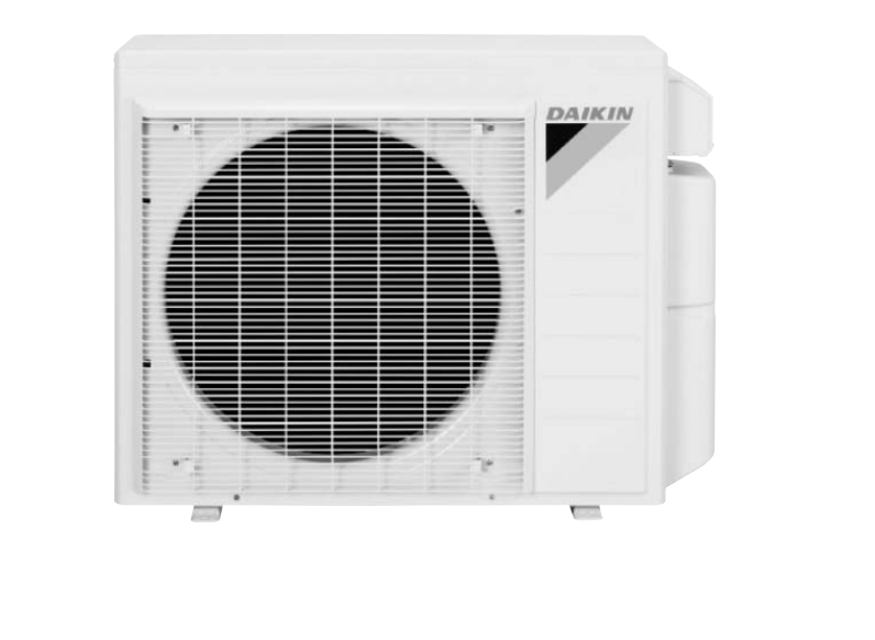

Daikin Outdoor Unit Multi-Split Type Air Conditioner 3MXL24QMVJU

Warning: Ensure that the voltage between (+) and (–) of the power module is about 0 V before proceeding

Voltage between (+) and (–) of the power module is about 0 V

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Compressor harness connector disconnected from the outdoor unit PCB

Measure resistance between the (+) or (–) terminal of the power module and the U, V, or W terminal of the compressor with a multimeter.

Enter the resistance measurement

Evaluate the measurement results

Sign off on the power module check

With the power on, operation off, and the connector connected, check the following

Output voltage of about 5 V between pins 1 and 3

Generation of 3 pulses between pins 2 and 3 when the indoor fan motor is operating

If OK in both steps (1) and (2)

Warning: Ensure the voltage between (+) and (–) of the diode bridge (DB1) is about 0 V before checking.

Enter the voltage between (+) and (–) of the diode bridge (DB1)

Measure the resistance between the pins of the DB1 referring to the table below.

Enter the resistance between the pins of the DB1

Is the resistance ∞ or less than 1 kΩ?

If the resistance is ∞ or less than 1 kΩ, short circuit occurs on the main circuit.

Sign off on the main circuit short check

Warning: This procedure requires trained personnel with PPE!

Main circuit checked for short circuit?

Warning: Never touch any live parts during the procedure.

Ensure firm contact between the multimeter probes and the test points.

Sign off on the capacitor voltage check

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Measure the resistance of each thermistor using a multimeter

If the room temperature thermistor is soldered on a PCB, remove the PCB from the control PCB to measure the resistance

Measure the resistance of the room temperature thermistor

If the connector of indoor heat exchanger thermistor is soldered on a PCB, remove the thermistor and measure the resistance

Measure the resistance of the indoor heat exchanger thermistor

Sign off on the thermistor resistance check
