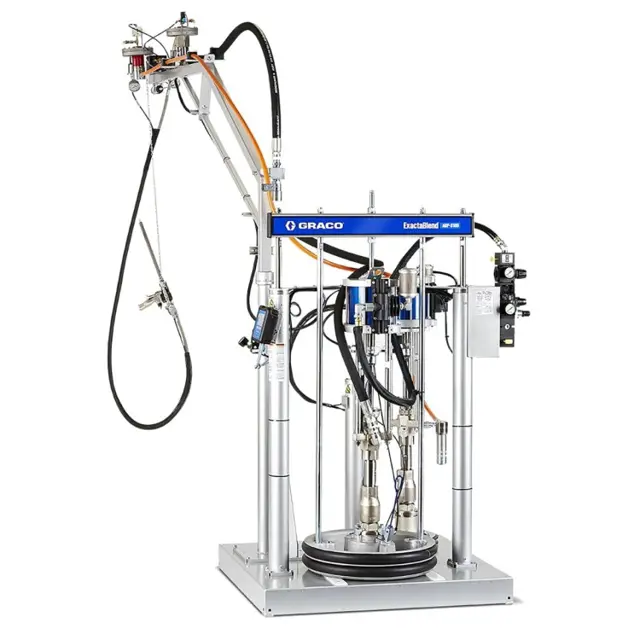

Graco Glazing Proportioner AGP-S100 Single Wiper

Catalyst (B) filter assembly checked for crystallization prevention

Calibration check assembly outlets verified to be clear and unobstructed

Restrictor housing and pin assembly checked for crystallization prevention

Warning: There must be no pressure when adjusting the packing nuts. Air pressure in the feed tanks is too much.

Follow Pressure Relief Procedure, page 47, including relieving air pressure in the tanks.

Upload a photo of the metering pump packing nuts filled with throat seal liquid (TSL).

Enter the torque of metering pump packing nuts in ft-lb

Upload a photo of the dosing valve packing nut filled with throat seal liquid (TSL).

Enter the torque of dosing valve packing nuts in in-lb

Sign off on the packing nuts adjustment

Warning: Only use genuine manufacturer’s replacement parts for repairs.

Check equipment for any worn or damaged parts

Check iso lube bottle for discoloration

Perform Shutdown and install nightcap

A lithium battery maintains the DM clock when power is not connected.

NOTE: This can be done by removing the CAN cable from the bottom of the DM.

3. Remove the old battery and replace with a new CR2032 battery.

4. Properly dispose the old lithium battery according to local codes.

Once a week check, clean, and replace (if needed) the following filters.

Catalyst pump outlet filter comes with a 60 mesh filter. Two pack 60 mesh filter replacement kit, 224459, is available.
