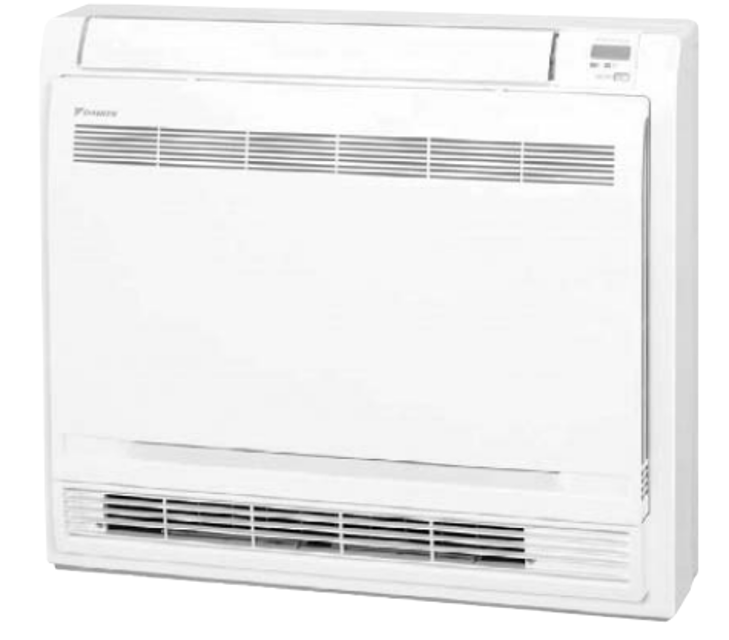

Daikin Indoor Unit Multi-Split Type Air Conditioner FVXS09NVJU

Need answers fast?
Explore the manual using AI.

Daikin Indoor Unit Multi-Split Type Air Conditioner FVXS09NVJU
Daikin Indoor Unit Multi-Split Type Air Conditioner FVXS09NVJU

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Daikin Indoor Unit Multi-Split Type Air Conditioner FVXS09NVJU

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Daikin Indoor Unit Multi-Split Type Air Conditioner FVXS09NVJU

Daikin Indoor Unit Multi-Split Type Air Conditioner FVXS09NVJU

Create an account to install this asset package.

Maintenance Plans for Daikin Indoor Unit Multi-Split Type Air Conditioner Model FVXS09NVJU

Integrate maintenance plans directly into your work orders in MaintainX.

Main Circuit Short Check

Check mark

Warning: Ensure the voltage between (+) and (–) of the diode bridge (DB1) is about 0 V before proceeding

Check mark

Enter the voltage between (+) and (–) of the diode bridge (DB1)

Check mark

Measure the resistance between the pins of the DB1 referring to the table below.

Check mark

Enter the resistance between the pins of the DB1

Check mark

Is the resistance ∞ or less than 1 kΩ?

Check mark

If the resistance is ∞ or less than 1 kΩ, short circuit occurs on the main circuit.

Check mark

Sign off on the main circuit short check

Run this procedureArrow right

Indoor Fan Motor Connector Check

Check mark

CTXG, CTXS, FTXS, FVXS Series

Check mark

1. Check the connection of connector.

Check mark

2. Check motor power supply voltage output (pins 4 - 7).

Check mark

3. Check motor control voltage (pins 4 - 3).

Check mark

4. Check rotation command voltage output (pins 4 - 2).

Check mark

5. Check rotation pulse input (pins 4 - 1).

Check mark

FFQ Series

Check mark

1. Check the connection of connector.

Check mark

2. Check motor power supply voltage output (pins 5 - 8).

Run this procedureArrow right

Hall IC Check

Check mark

CDXS, FDXS Series

Check mark

Check the connector connection

Check mark

With the power on, operation off, and the connector connected, check the following

Check mark

Output voltage of about 5 V between pins 1 and 3

Check mark

Generation of 3 pulses between pins 2 and 3 when the indoor fan motor is operating

Check mark

If NG in step (1)

Check mark

If NG in step (2)

Check mark

If OK in both steps (1) and (2)

Check mark

Sign off on the Hall IC Check

Run this procedureArrow right

Thermistor Resistance Check

Check mark

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Check mark

Thermistors disconnected from the PCB

Check mark

Measure the resistance of each thermistor using a multimeter

Check mark

When the room temperature thermistor is soldered on a PCB, remove the PCB from the control PCB to measure the resistance.

Check mark

Room temperature thermistor removed from the PCB

Check mark

Measure the resistance of the room temperature thermistor

Check mark

When the connector of indoor heat exchanger thermistor is soldered on a PCB, remove the thermistor and measure the resistance.

Check mark

Indoor heat exchanger thermistor removed from the PCB

Check mark

Measure the resistance of the indoor heat exchanger thermistor

Run this procedureArrow right

Electronic Expansion Valve Check

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

EV connector correctly inserted in the PCB

Check mark

All EVs generate a latching sound after power cycle

Check mark

If any EV does not generate a latching sound, proceed to next step

Check mark

Continuity between pins 5 - 1

Check mark

Continuity between pins 5 - 2

Check mark

Continuity between pins 5 - 3

Check mark

Continuity between pins 5 - 4

Check mark

If there is no continuity between the pins, the EV coil is faulty

Run this procedureArrow right
