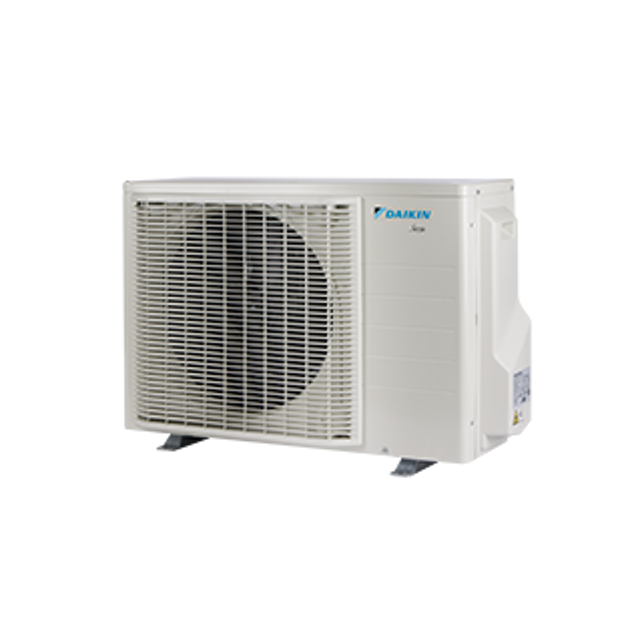

Daikin Outdoor Unit AC ARM09MV2S

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the sound blanket (top).

Untie the 2 strings and open the sound blanket (body).

Remove the sound blanket (body).

Sign off on the sound blankets disassembly

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Caution: Restore the piping by non-oxidation brazing.

Note: Before working, make sure that the refrigerant gas is empty in the circuit.

Note: Be sure to apply nitrogen replacement when heating up the brazed part.

Note: Do not use a metal saw for cutting pipes by all means because the sawdust comes into the circuit.

Note: When withdrawing the pipes, be careful not to pinch them firmly with pliers. The pipes may get deformed.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the 7 screws on the terminal board and disconnect the connecting wire and the power supply wire.

Remove the screw and remove the wire fixture.

Remove the screw on the rear side.

Remove the 4 screws on the right side.

Unfasten the hook and remove the right side panel.

Remove the screw of the terminal board (X1M).

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Warning: Since it may happen that the refrigerant oil in the compressor catches fire, prepare wet cloth so as to extinguish fire immediately.

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Caution: Restore the piping by non-oxidation brazing.

Note: Before working, make sure that the refrigerant gas is empty in the circuit.

Note: Be sure to apply nitrogen replacement when heating up the brazed part.

Note: Do not use a metal saw for cutting pipes by all means because the sawdust comes into the circuit.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the screw and remove the stop valve cover.

Remove the 3 screws (left: 2 screws, right: 1 screw) and remove the top panel.

Remove the 6 screws of the front panel.

Lift up the left side and unfasten the hooks.

Release the right side hooks and remove the front panel.

Press the 2 projections from the rear side and rotate the discharge grille to remove it.

Sign off on the outer panels disassembly
