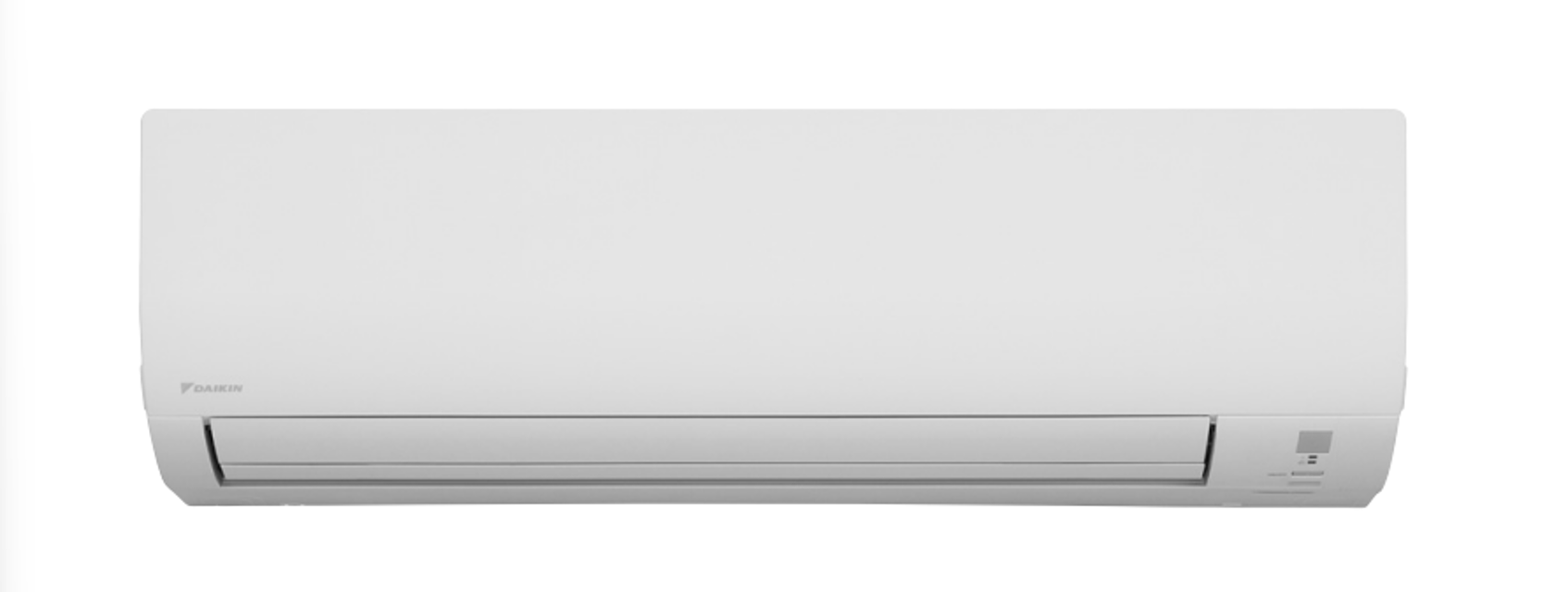

Daikin Indoor Unit Wall Mounted Type Air Conditioner FTX35KV1B

Fan motor wire breakdown / short circuit check

1. Check the connector for connection.

3. Check if each resistance at the phases U - V and V - W is 90 Ω ~ 100 Ω (between the pins; 12 - 9, and between 9 - 6).

1. Check the connector for connection.

2. Check the motor control voltage is generated (between the pins 2 - 3).

1. Check the connector for connection.

EV connector correctly connected to the PCB

EV generates a latching sound when power is turned off and on

Continuity confirmed when connector is disconnected and checked with a multimeter

Check the continuity between the pins

Check the continuity between the pins for the 5P connector models

Outdoor unit PCB (main PCB) is not faulty

Sign off on the electronic expansion valve check

Warning: This check requires trained personnel with PPE!

Measure the power supply waveform between No. 1 and No. 2 on the terminal board

Upload a photo of the measured waveform

Is the power supply waveform a sine wave as shown in Fig.1?

Is there waveform disturbance near the zero-cross as shown in the sections circled in Fig.2?

Sign off on the power supply waveforms check

Warning: This procedure requires trained personnel with PPE!

Install an inverter analyzer instead of a compressor.

Charged voltage of the built-in smoothing electrolytic capacitor dropped to 10 VDC or below?

Terminals removed from the compressor?

Terminals connected to the terminals of the inverter analyzer?

Warning: Be careful not to let the terminals (U,V,W) touch each other. Otherwise, high voltage is applied.

Power transistor test operation activated from the indoor unit?

Diagnose method (Diagnose according to 6 LEDs lighting status.)

Warning: Ensure the voltage between (+) and (–) of the power module is about 0 V before proceeding

Voltage between (+) and (–) of the power module is about 0 V

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Compressor harness connector disconnected from the outdoor unit PCB

Measure resistance between the terminals of the power module and the terminals of the compressor with a multimeter.

Enter the resistance measurement

Evaluate the measurement results

Sign off on the power module check
