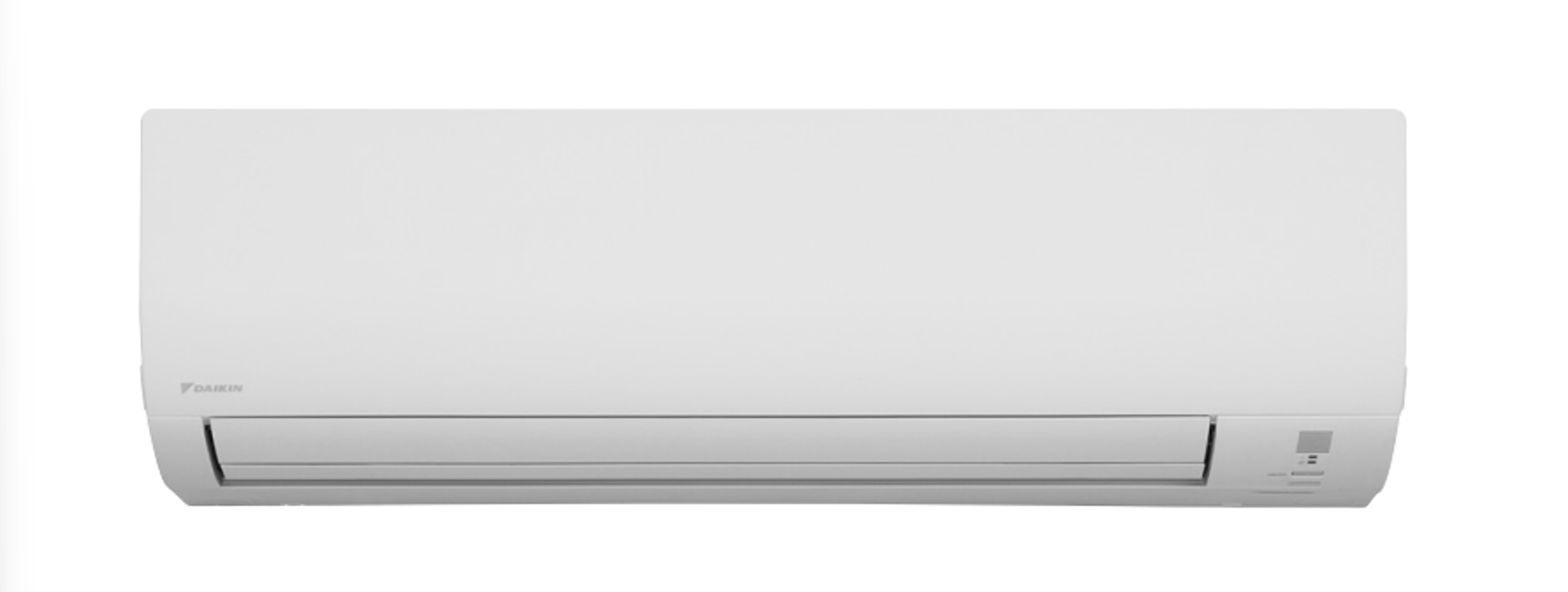

Daikin Indoor Unit Wall Mounted Type Air Conditioner FTX25KV1B

Daikin Indoor Unit Wall Mounted Type Air Conditioner FTX25KV1B

Create an account to install this asset package.

Maintenance Plans for Daikin Indoor Unit Wall Mounted Type Air Conditioner Model FTX25KV1B

Integrate maintenance plans directly into your work orders in MaintainX.

Rotation Pulse Check

Check mark

Ensure that the voltage of 320 + 100 V ~ 320 - 50 V is applied.

Check mark

Set operation off and power off. Disconnect the connector S70 or S71.

Check mark

Voltage between the pins 4 - 7

Check mark

Control voltage between the pins 3 - 4

Check mark

Rotation command voltage between the pins 2 - 4

Check mark

Keep operation off and power off. Connect the connector S70 or S71.

Check mark

4 rotation pulses (0 ~ 15 VDC) at the pins 1 - 4 when the fan motor is rotated 1 turn by hand

Check mark

Is the fuse melted?

Check mark

If NG in step 2 → Defective PCB → Replace the outdoor unit PCB (main PCB).

Run this procedureArrow right

Indoor Fan Motor Connector Output Check

Check mark

Fan motor wire breakdown / short circuit check

Check mark

1. Check the connector for connection.

Check mark

2. Turn the power off.

Check mark

3. Check if each resistance at the phases U - V and V - W is 90 Ω ~ 100 Ω (between the pins; 12 - 9, and between 9 - 6).

Check mark

Motor control voltage check

Check mark

1. Check the connector for connection.

Check mark

2. Check the motor control voltage is generated (between the pins 2 - 3).

Check mark

Rotation pulse check

Check mark

1. Check the connector for connection.

Run this procedureArrow right

Power Supply Waveforms Check

Check mark

Warning: This check requires trained personnel with PPE!

Check mark

Measure the power supply waveform between No. 1 and No. 2 on the terminal board

Check mark

Is the power supply waveform a sine wave?

Check mark

Upload a photo of the waveform

Check mark

Is there waveform disturbance near the zero-cross?

Check mark

Sign off on the power supply waveforms check

Run this procedureArrow right

Inverter Analyzer Check

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Inverter analyzer: RSUK0917C

Check mark

Turn off the power before starting the procedure.

Check mark

Power turned off?

Check mark

Install an inverter analyzer instead of a compressor.

Check mark

Inverter analyzer installed?

Check mark

Make sure the charged voltage of the built-in smoothing electrolytic capacitor drops to 10 VDC or below before carrying out the service work.

Check mark

Enter the voltage of the built-in smoothing electrolytic capacitor

Check mark

Connect the terminals to the terminals of the inverter analyzer.

Run this procedureArrow right

Main Circuit Short Check

Check mark

Warning: Ensure the voltage between (+) and (–) of the diode bridge (DB1) is about 0 V before proceeding

Check mark

Enter the voltage between (+) and (–) of the diode bridge (DB1)

Check mark

If the voltage is not about 0 V, stop the procedure and report the issue

Check mark

Enter the resistance between the pins of the DB1

Check mark

Is the resistance ∞ or less than 1 kΩ?

Check mark

If the resistance is ∞ or less than 1 kΩ, a short circuit occurs on the main circuit

Check mark

Sign off on the main circuit short check

Run this procedureArrow right
